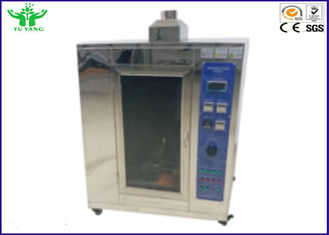

豫阳YY616高精度50℃〜960℃灼热丝试验机

Glow wire: 4mm ± 0.04mm Ni/Cr(80/120) special standard annular horizontal type

Thermocouple: 0.5mm K-type,heatproof of 1100 ℃ ( better than standard 1050 ℃ )

Heating temperature: 50 ℃ ～ 960 ℃( could be preset ) ,temp fluctuation < 3 ℃

Pressure: 1.0N±0.1N(adjustable)(better than standard 1.0N±0.2N)

Max depth: 7mm ± 0.5mm (adjustable)

Sample moving speed: 10mm /s ～ 25mm /s

Test time: 30s±0.1s(1s ～ 999.9s digital readout, preset )

Ignition plate thickness: 10mm thick white pine plate with size of 12g /m 2 ～ 30g /m 2 , standard silk paper, 200mm ± 5mm under the glow wire

Test room: ≥ 0.5m³,black back, background illumination ≤ 20Lx ；

Size: L 1000mm × W 650mm × H 1100mm ,Gas vent 100mm
