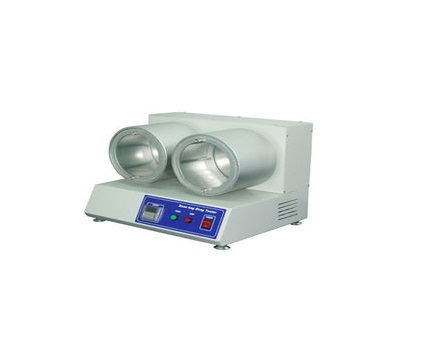

YuYang YY814 纺织豆袋测试仪 (转速20±3 r/min) (20±3 r/min)

Rotation speed: 20±3 r/min

Tumbler: inner diameter:200mm,depth:145mm

Pinned shelf: 8pcs

Pinned bar: 9pcs,external diameter:8mm,depth:127mm

Nails: bulged length 10 mm ,spacing 12 mm ,the angle of vertical direction 30°±5

Specimen dimension: 215mmx115mm

Whole dimension: 47x38x38cm

Weight(approx): 38kg

Power supply: AC 220V 50HZ 3A
