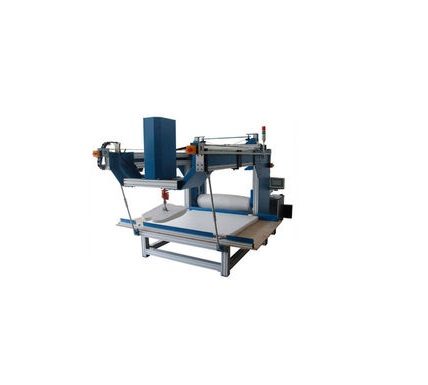

YuYang YYJ-018 家具耐久性床垫表面综合测试仪

Rolling test stroke: The mattress mid-line left and right are both 500 mm.

Rolling test speed: 16±2Cycles per minute

Roller: 1400N,The middle diameter:300mm,Both ends diameter:250mm,length:1000

Counter: 0~999999can be set.

The control way of rolling: Touch screen + PLC control

Loading cushion on the edge: buttocks shape,380mmx495mm

Loading parts on the edge: The midpoint on the long edge of the mattress.200 mm from edge.

Loading force on the edge: 1000N

Loading time on the edge: 3S

Loading speed of measurement: 90±5mm/min

Capacity of force sensor: 2kN
