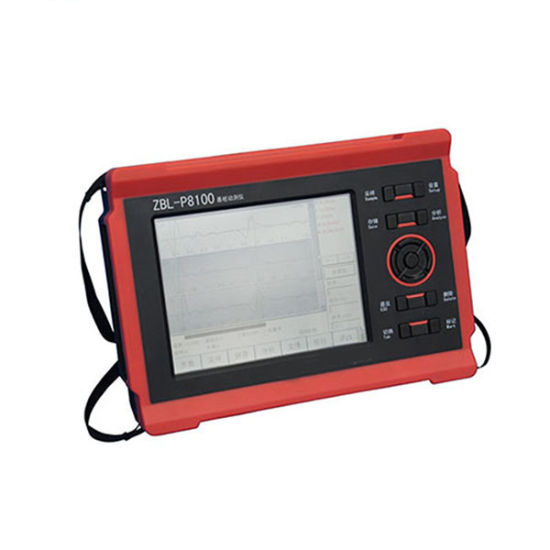

ZBL-P8100 基桩动测仪建筑基桩动测仪

  • 制造商: ZBL
    Model: ZBL-P8100
    • 报价要求 报价要求
  • Price (exclude tax) 167,320,000 VND
    Price (include tax) 184,052,000 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267


Data storage: 4GB
Amplifier frequency range: 10Hz~10kHz
Sampling time intervals: 1 ~ 64000µs adjustable
A/D resolution: 24 bit
Number of channels: 2
Frequency range of Transducer: 0.5~9000 Hz(acceleration mode)
Interference between channels: ≤1%
Dimensions: 210mm x149 mm x60 mm
Monitor: 5.7 inch、high brightness、TFT  Color LCD
Operation Mode: key+Touch screen
Dynamic range:  ≥184 dB
Transducer sensitivity: 100 mv/g(acceleration mode)
Continuous operating hours: >5 hrs
ZBL-P8100, ICP Accelerated transducer ,Hammer,Waterproof case



  By using the reflected wave method, the apparatus is used to assess the integrality of concrete pile and identify the extent and location of the pile defect. It can be used for testing perfusion pile and hammer pile. It can also be used for testing the exposed top surface of constructions such as pillars.
