ZBL-U5700 多通道超声测桩仪
制造商: ZBL Model: U5700 - 联系
Channels: 4
Number of tested profiles per time: 6
Control mode: Built in A8 industrial control board
Screen: 10.4 inches high definition LCD screen
Operating method: Touch screen
Storage method: built-in electronic hard disk (≥4GB) + U disk capacity
Acquisition mode: Synchronous continuous mining
Sampling interval: 0.05μs~1638.4μs optional multiple levels
Acoustic transit time accuracy: 0.05μs
Record length: 512~4096
Acoustic transit time range: ±1677.7ms
Emission voltage（V） : 65、250、500、1000 V adjustable
Amplifier gain: 82dB
Dynamic range: 154 dB
Amplifier gain accuracy: 0.5dB
Band width (12dB): 2~500kHz
Receiver sensitivity: ≤10μV
Channels interference: ≤1/400
Transmission port: USB、MiniUsb、WiFi、Bluetooth
Measuring method: Horizontal test, inclined test, retest, finer increment test
Power Built-in lithium battery
Outside 220V AC/DC
Work time（h） > 8
Work envirment Temperature -10℃~+40℃
Humidity < 90%RH
Size 270mm×220mm×75mm
Weight 2.5kg
Lifting device connection mode wirless

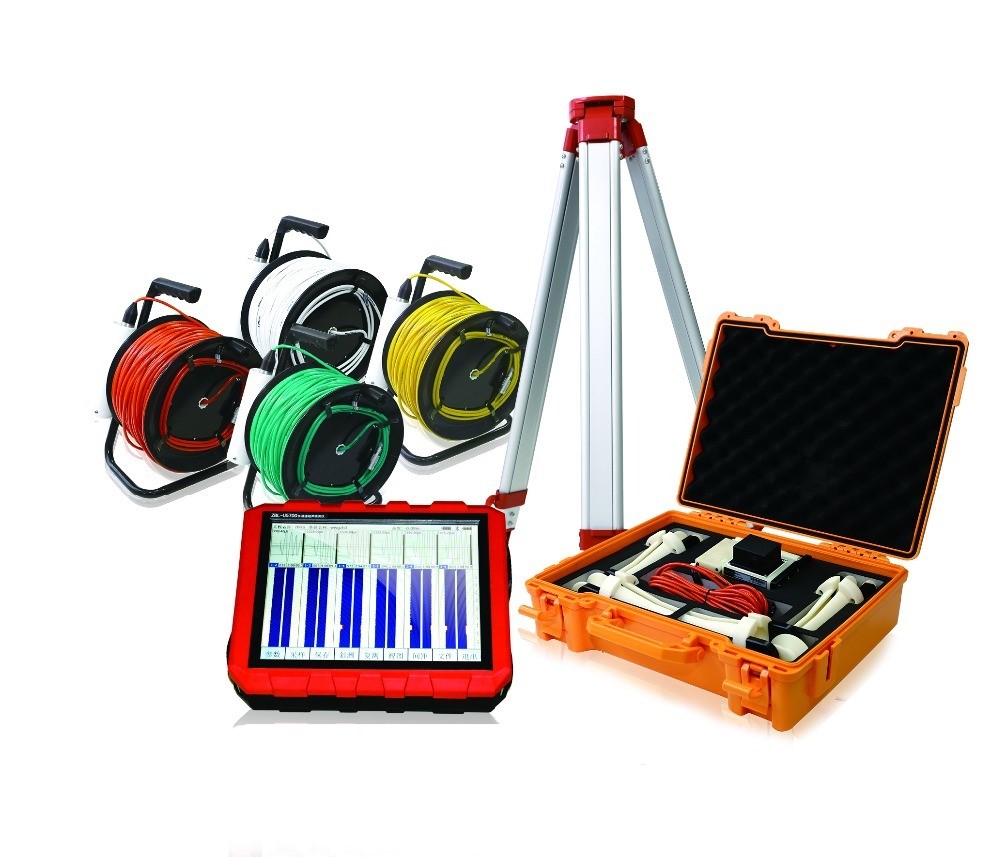

ZBL-U5700 Multichannel Ultrasonic Pile Integrity Tester is the perfect device for cross-hole
acoustic wave transmission method. This instrument is specifically designed for testing the pile
foundation integrity by using acoustic a wave transmission method, and contains the unique multi-
channel self-emission/self-receiving function. It also enables the concrete pile all-profile test with
only one lift (3 or 4 acoustic testing pipes embedded), which makes the detection process more efficient and simpler.
