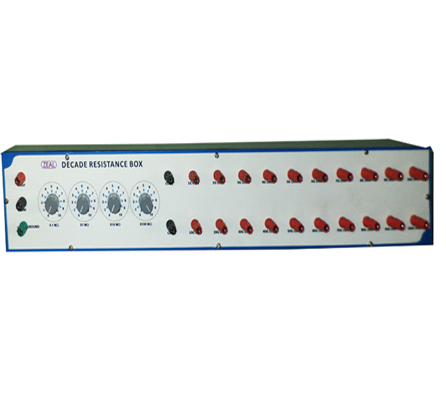

ZEAL ZMDRB-0.1M-100G Decade Resistance Box With Fix Resistors (0.1 MΩ, 1 MΩ, 10 MΩ, 100 MΩ)

Specifications:

  • Decades of 0.1 MΩ, 1 MΩ, 10 MΩ, 100 MΩ

  • Fixed Resistors: 1 GΩ, 2 GΩ, 3 GΩ 4 GΩ, 5 GΩ, 6 GΩ, 7 GΩ, 8 GΩ, 9 GΩ, 10GΩ, 20 GΩ, 30 GΩ, 40 GΩ, 50 GΩ, 60 GΩ, 70 GΩ, 80 GΩ, 90 GΩ, 100 GΩ

Accuracy:

  • ± 5% for all decades and fixed resistors

  • 10 Fix resistors 1 GΩ x 10 in series mounted on acrylic

  • 10 Fix resistors 10GΩ x10 in series mounted on acrylic

Test Voltage:

  • 1000V for 0.1 M Ω,1 M Ω,10 M Ω, 100 MΩ

  • 5000V for all fixed resistors

Power Rating: 1 Watt at 500C
