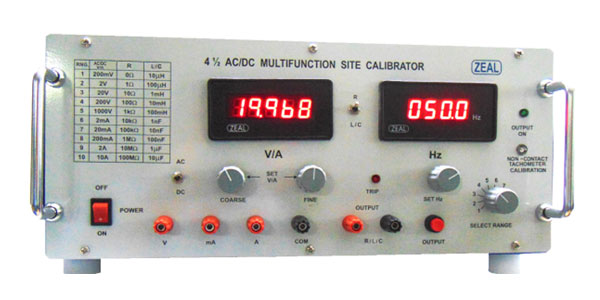

ZEAL ZMMFCS4.5 多功能现场校准器 (1000V, 10A)

Input Power: 230 V AC or 110 V AC ( 50 / 60Hz )

DC Voltage Ranges: 200mV, 2V, 20V, 200V, 1000V

AC Voltage (45 Hz to 1000 Hz) Ranges: 200mV, 2V, 20V, 200V, 1000V

DC Current Ranges: 2mA, 20mA, 200mA, 2A, 10A

AC Current (45 Hz to 1000Hz) Ranges: 2mA, 20mA, 200mA, 2A, 10A

Accuracy DC Voltage : ±0.2%, AC Voltage: ±0.3%,

                DC Current : ±0.15%, AC Current: ±0.2%,

                Resistance : ±0.25%

( Accuracies specified at 25 deg C, RH < 70 %, basic accuracy ±5 digits for DC parameters & basic accuracy ±15 digits for AC parameters. )

Stability: 200 PPM for DC parameters, 350 PPM for AC Parameters.

Weight: 15 kg

Dimensions: W : 400 X D : 400 X H : 170 mm

Accessory : X 100 AC / DC current coil for clamp on meter calibration up to 900A
