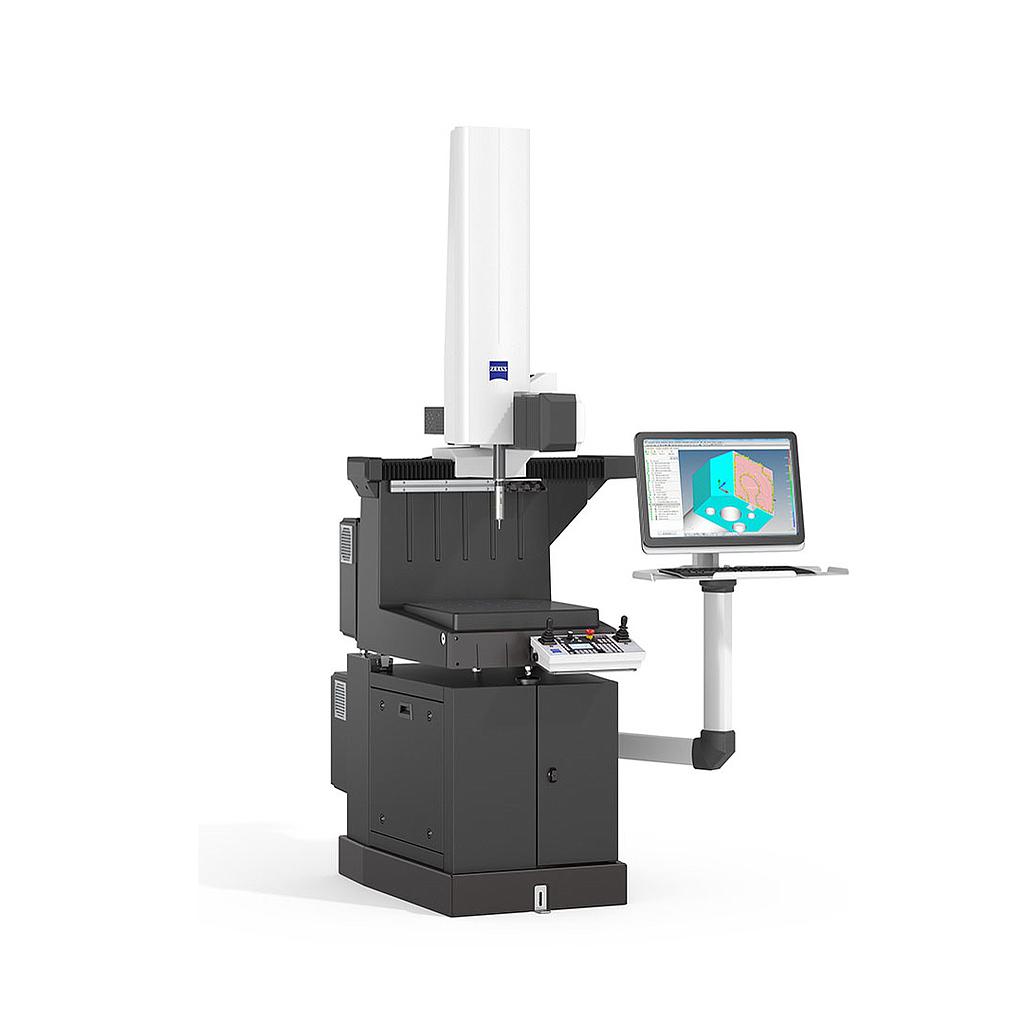

ZEISS DuraMax HTG 车间CMM仪

Measuring volume: 5000 x 500 x 500 mm3

Length measurement error E0 in μm: 2.2 + L/300 18°C - 22°C

Extended temperature range (ZEISS TVA 1) E0/E40 in µm: 2.5 + L/250 18°C - 26°C

Extended temperature range (ZEISS TVA 2) E0/E40 in µm: 2.7 + L/200 18°C - 30°C

Extended temperature range (ZEISS TVA 3) E0/E40 in µm: 3.9 + L/100 15°C - 40°C

Software: ZEISS CALYPSO

Tactile Sensor: VAST XXT TL 3

Stylus length: radially up to 65 mm (star stylus)

Probe diameter: 0.3 - 8 mm
