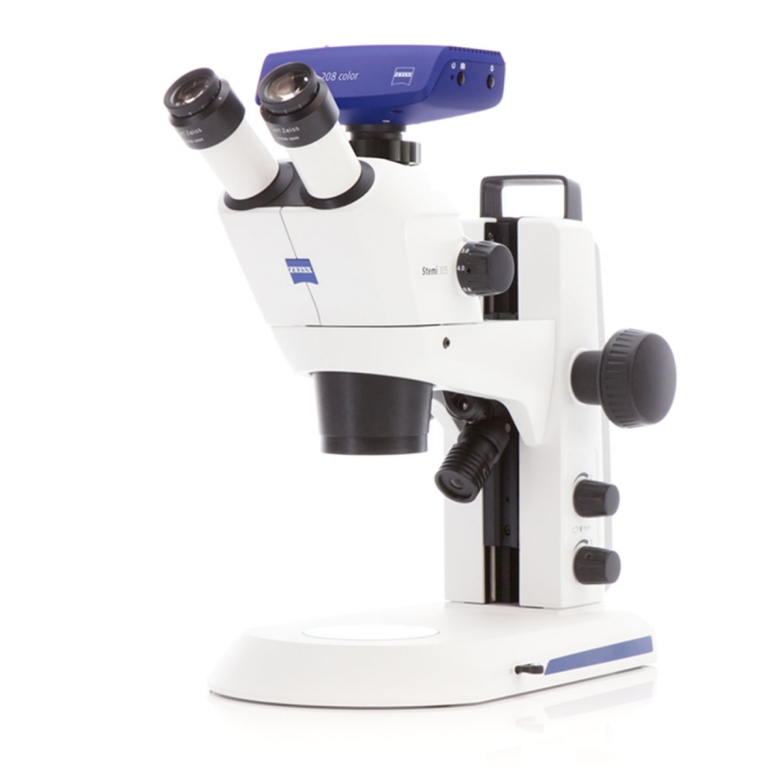

ZEISS Stemi305 立体光学显微镜

Operation concept: Stereo microscope, Greenough design with 5:1 zoom range

Zoom bodies:

  Stemi 305 (binocular)

  Stemi 305 trino (phototube, 50/50 division to the left, integrated c-mount camera adapter 0.5×)

  Stemi 305 cam (integrated 1.2 Megapixel Wi-Fi camera and router)

Magnification range:

   8× to 40× (basic version with 10× eyepieces)

   4× to 200× (interchangeable optics)

Max. resolution: 200 Lp/mm (basic version); 400 Lp/mm (interchangeable optics)

Working distance: 110 mm (basic version); 185 mm (interchangeable optics)

Maximum object field: 29 mm (basic version); 58 mm (interchangeable optics)

Interface to Stemi mount: 76 mm (international)

Interchangeable eyepieces: PL10x/23 Br. foc (included), PL16×/14 Br. foc, W25×/10 foc

Stemi carriers for column 32 mm: Stemi mount with drive, stemi mount tiltable 0–90°
