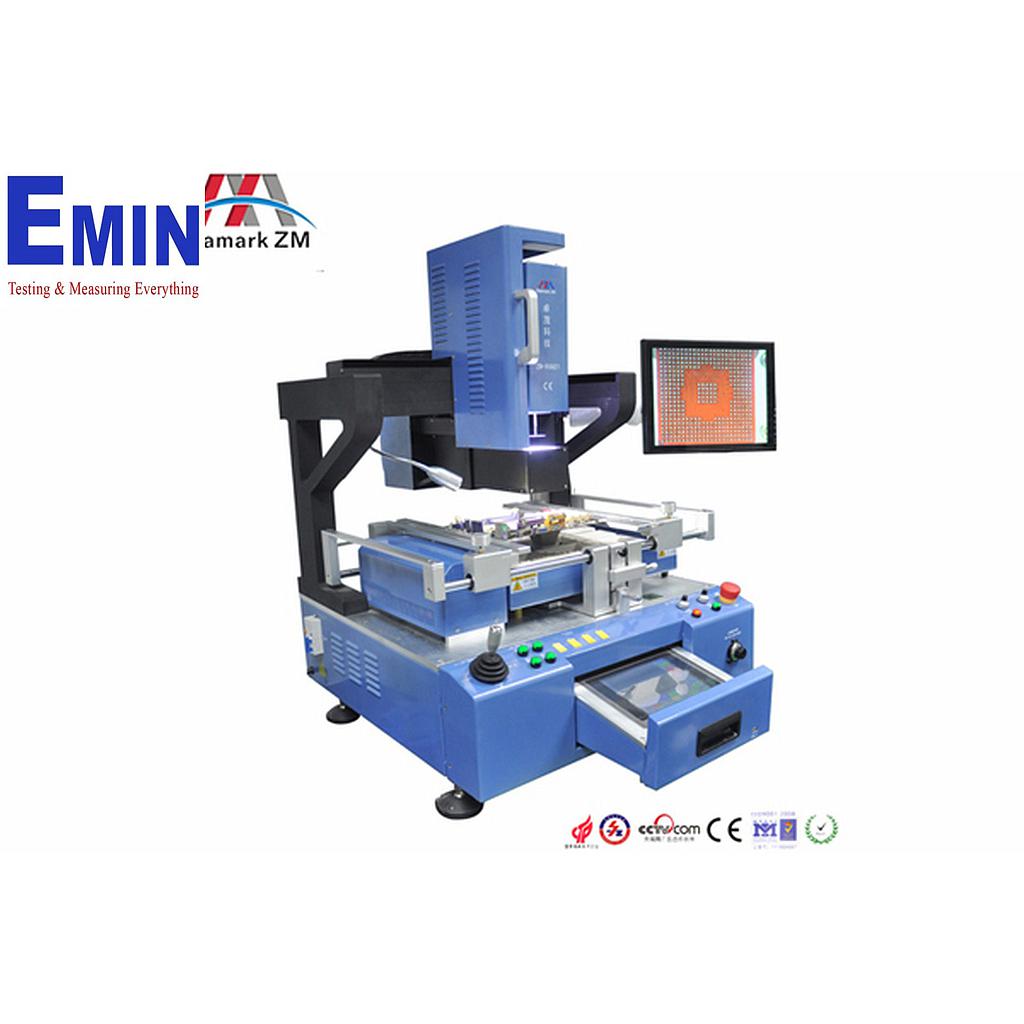

Seamark ZM-R6821 - 全自动红外BGA返修台,配有原装德国Elstein陶瓷加热板和K型热电偶



Manufacture: ZHUOMAO
Model: ZM-R6821
Made in: China

Total Power consumption: 6800W
Top heater: 1200W
Bottom heater: 2nd  heater 1200W,3rd IR heater 4200W
power: AC220V±10%     50/60Hz
Machine Dimensions: 890*790*1000 mm (LCD stand not included)
Positioning: V-groove, PCB support can be adjusted in any direction and with external universal fixture
Temperature control: K-type thermocouple (Closed Loop), heating independently, temperature precision within±1 degree
PCB size: Max 350*450mm  Min 10*20 mm
Electrical materials: Servo Drive( Panasonic)+Touch screen( Taiwan)+Panasonic PLC+Heating plate(Germany)
Camera magnification: 10x-100x
Optical system: Japanese original high-definition CCD color imaging system, Joystick control,
BGA chip: 2*2-80*80mm
Touch screen: 8.0 inch , Resolution 640*480, Panel Visa touch screen, external USB interface
External temperature sensor: Four(optional)
Work Mode: Power drive(Optional gas drive + nitrogen)
Placement Accuracy: X, Y axis and the R angle with micrometer adjust, accuracy within ± 0.01MM
Net weight: 130kg
