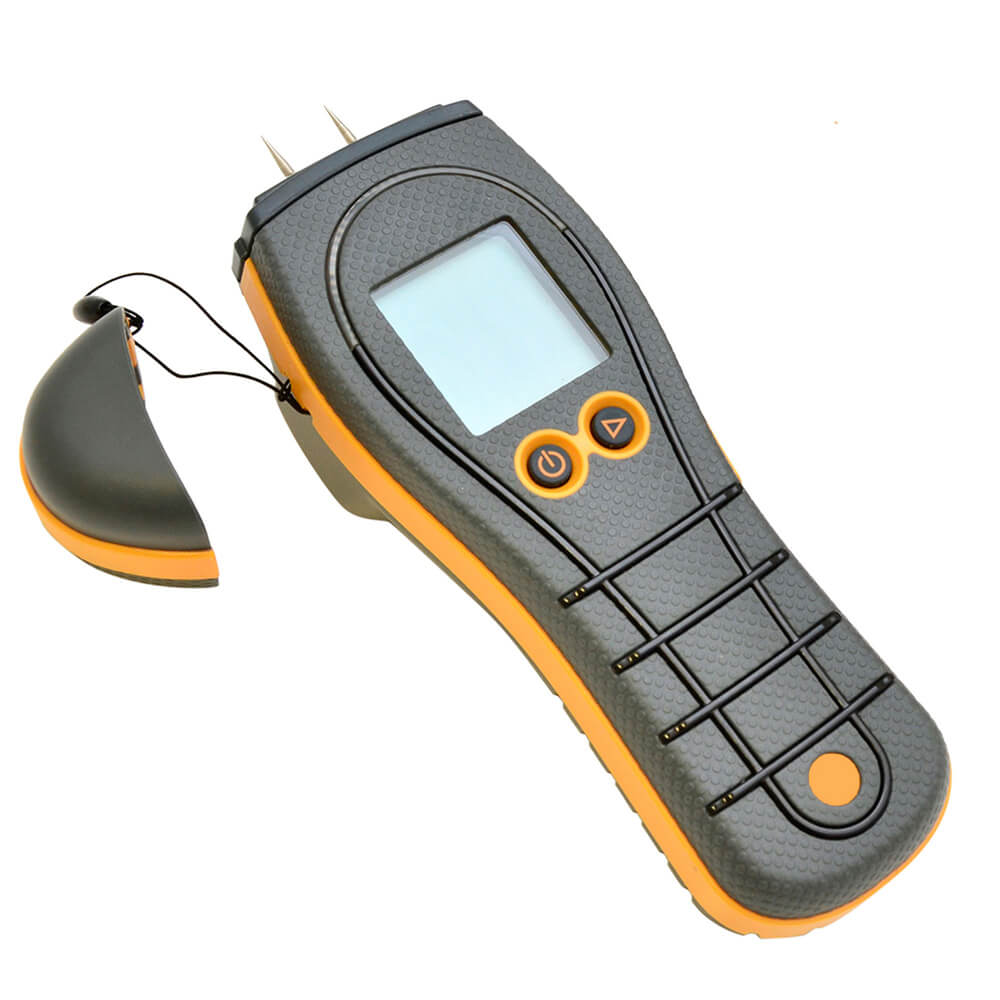

Máy đo độ ẩm bê tông, vữa, gạch, gỗ Elcometer G7000PS
Hãng sản xuất: ELCOMETER Model: G7000PS - Liên hệ
Tham khảo dịch vụ Hiệu chuẩn-Kiểm định và Sửa chữa
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222) 730.39.68
TP. Hải Phòng: (0225) 730.03.89
TP. HCM: (028) 38.119.636
Đồng Nai: 0932.160.940
Đo độ ẩm bê tông, vữa, gạch, gỗ
Phạm vi đo
- 70-999 tương đối (không xâm nhập)
+ Khô (màu xanh); 70-169
+ At Risk (màu vàng); 170-199
+ Ướt (màu đỏ); 200-999
- 7,9% đến 99% WME (pin đo)
+ Khô (màu xanh); 7-16,9
+ At Risk (màu vàng); 17-19,9
+ Wet (màu đỏ); 20-99,9
Đo độ sâu: Không xâm nhập lên đến 19mm; Pin lên đến 12.7mm
Màn hình LCD với các chỉ số màu sắc riêng biệt
Kích thước: 190 x 70 x 49mm
Trọng lượng: 225 g
Nguồn cung cấp: pin 9V
Danh sách đóng gói: Máy chính Elcometer 7000, đầu dò HD MC , đầu dò tường sâu 127mm, biểu đồ hiệu chuẩn gỗ, pin, túi mang và hướng dẫn sử dụng
Elcometer 7000 Digital Moisture Meters
The Elcometer 7000 range offers accurate and easy to use moisture measurement.
Available with pin probes or non-invasive for non-destructive testing, the gauges give average moisture content by comparing the change in impedance between damp and acceptably dry substrates.
- Calibrated ready for use
- Instant readings on a clear, easy to read scale
- Fully portable, battery operated and non-destructive
Types of Moisture Meters
On porous materials such as concrete, plaster, brick, wood, the moisture content of the substrate should be measured, as the presence of moisture within a material will result in poor adhesion, premature coating failure and poor appearance.
It is not sufficient to simply ensure that the surface is dry as often the surface of the substrate is the driest point – due to evaporation. It is important to establish the moisture content within the substrate itself.
When powder coating wooden panels, for example, if the wood (or mdf) has too high a moisture content, as the panel passes through the oven, the moisture is heated, generating steam – causing significant coating finish issues.
Applying a coating to a concrete floor which is too damp can cause premature adhesion failure. Moisture meters have been developed to specifically determine the level of moisture in a substrate and come in two forms:
Pin-type moisture meters: Invasive pins are pushed firmly into the surface of the substrate being measured and by measuring the electrical resistance between the pin electrodes provide the percentage moisture content (%MC) in the substrate.
Pinless, contact-type moisture meters: Whilst pinless meters typically measure moisture content faster and are non-destructive they do require a relatively flat surface because the sensors are mounted on the base of the gauge making them ideal for concrete.
