Máy kiểm tra bê tông Elcometer W181----1 (2.207 Nm)

  • Cam kết chất lượng
  • Bảo hành chính hãng
  • Giao hàng tận nơi
  • Đơn giản hóa giao dịch

Hãng sản xuất: Elcometer
Model: W181----1
Bảo hành: 12 tháng

Lực tác động: 2.207 Nm
Độ chính xác: ± 2  số rebound
Dải đo: 10 đến 100 số rebound
Trọng lượng: 1.5 kg
Kích thước:  355 mm x 55 mm (máy kiểm tra); 340 mm x 78 mm (hộp đựng)
Danh mục đóng gói: Máy chính 181, hộp đựng nhựa, hướng dẫn sử dụng, đá mài

Manual

Datasheet

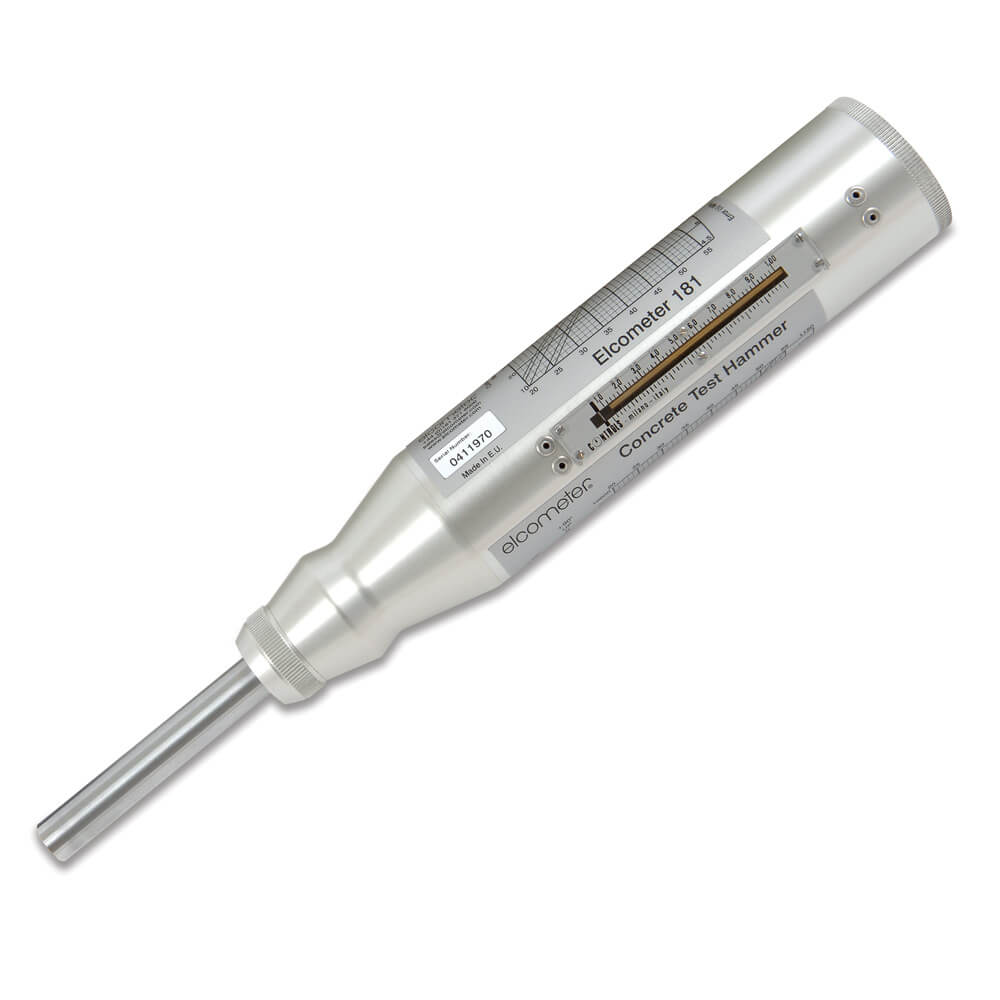

Elcometer 181 Analogue Concrete Test Hammer

The concrete test hammer provides a quick, simple and inexpensive method for non-destructive evaluation of concrete compression strength and other masonry materials.

Concrete test hammers are one of the most widely used instruments in the field of non-destructive testing and Elcometer offer both mechanical and digital models.

This gauge consists of a spring loaded plunger which, when released, strikes the surface with fixed and constant impact energy. During the rebound stroke, the mass moves a pointer that indicates the maximum point of return and at the same time indicates a reference value called Rebound Number.

This number, converted by the correlations available on the hammer, gives the compression resistance value in respect of the impact angle.

Key Features:

  • Impact Energy 2.207 Nm
  • Supplied with grinding stone to prepare test surface
  • Aluminium body
  • Rebound value indicated on test hammer
  • Rebound value chart on body, for quick calculation of compressive strength
  • Curve selection on chart dependant on testing angle





Elcometer 181 Analogue Concrete Test Hammer

Technical Specification

Part Number

Description

Certificate

W181----1

Elcometer 181 Analogue Concrete Test Hammer - MPa / PSI Scale

ο

Accuracy

Better than +/- 2 Rebound Number (When tested on Calibration Anvil at 80)



Resolution

2 Rebound Number(s)



Range

10 to 100 Rebound Number(s)



Dimensions

Hammer: 280mm (11.02") length x 55mm (2.17") diameter

In Case: 350mm (13.78") length x 80mm (3.15") diameter



Weight

1.5kg (3.3lbs) with case



Packing List

Elcometer 181 analogue concrete test hammer, plastic storage case, abrasive stone & operating instructions
