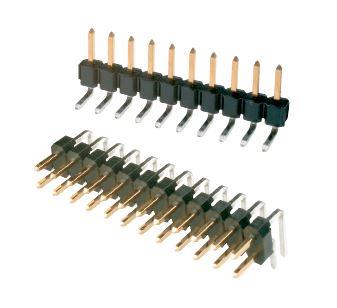

3M Electronic Solutions Division 961216-5804-AR Pin Strip 16P RA 2 ROW GOLD 6.9MM MATING PIN

Pitch: 2.54 mm (0.1 in)

Row Spacing: 2.54 mm (0.1 in)

Housing Color: Black

Contact Gender: Pin (Male)

Current Rating: 2 A

Mounting Angle: Straight

Mounting Style: SMD/SMT

Number of Rows: 2 Row

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Thermoplastic

Termination Style: Solder Pin

Mating Post Length: 6.9 mm (0.272 in)

Flammability Rating: UL 94 V-0

Number of Positions: 16 Position

Insulation Resistance: 500 MOhms

Termination Post Length: 3.3 mm (0.13 in)

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 25 C
