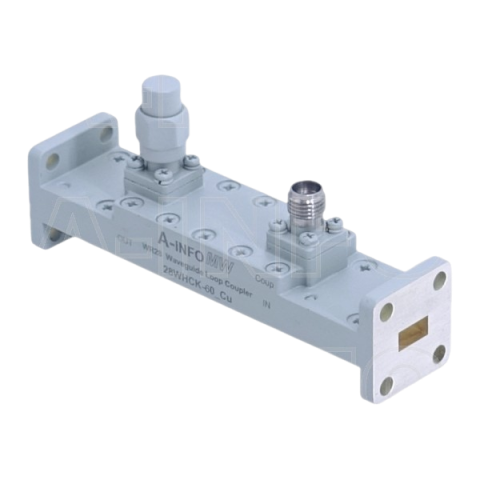

Couple Type: Loop Coupler
Coupling Type: Directional
Waveguide Band: Ka
Waveguide Type: Rectangular
Waveguide Size EIA WR: WR28
Frequency, Min (GHz): 26.5
Frequency, Max (GHz): 40
Coupling, (dB): 60
Coupling Accuracy, Max (±dB): 1
Frequency Sensitivity, Max (±dB): 0.8
Directivity, Typ, (dB): 15
I.L., Typ (dB): 0.08
I.L., Max (dB): 0.1
VSWR Mainline, Max: 1.15:1
VSWR Secondline, Max: 1.70:1
Impedance, (Ohm): 50
Power Handling, CW, (W): 110
Power Handling, Peak, (KW): 50
