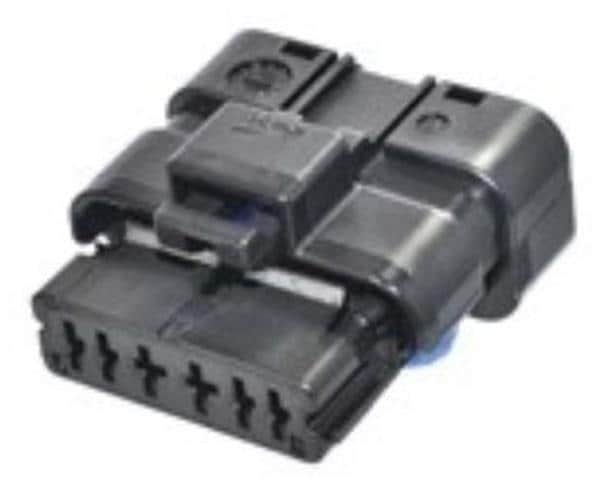

Aptiv 211PC069S0149 Hybrid 6 way F Hybrid 1.5 2.8 SICMA Mini Sealed Connector
ManufacturerAptiv(View more products from this manufacturer)
Model211PC069S0149
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Black
Width: 34.9 mm
Family: SICMA
Gender: Receptacle (Female)
Height: 21.6 mm
Length: 33.75 mm
Material: Polybutylene Terephthalate (PBT)
Unit Weight: 15.114 g
Contact Gender: Without Socket Contacts
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 1 Row
Wire Gauge Max: 14 AWG
Wire Gauge Min: 22 AWG
Housing Material: Polybutylene Terephthalate (PBT)
Wire Gauge Range: 22 AWG to 14 AWG
Termination Style: Crimp
Number of Positions: 6 Position
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
