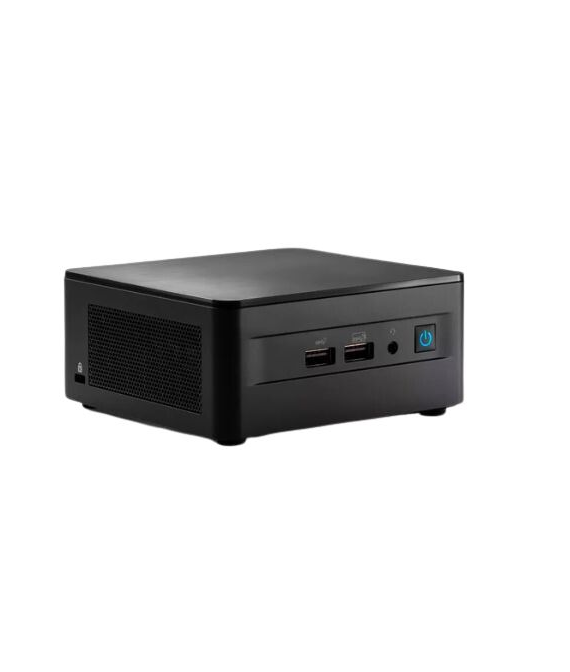

Form Factor: Small Form Factor
Chassis Dimensions: 117 x 112 x 54 mm (0.7L)
Processor Brand: Integrated - Intel® Iris® Xe Graphics (i5/i7)
Processor Type: Intel® Core™ i7-1360P Processor
Processor Speed: 5.0 GHz
# of Memory Slots: 2
Processor Count: 4
Memory Technology: DDR4
Computer Memory Type: 2 x SO-DIMM, DDR4-3200MHz
Maximum Memory Supported: up to 32GB*2
M.2 Card Slot (storage):
1 x M.2 2280 PCIe Gen4x4, supports 128GB~8TB NVMe™ SSD
1 x 2.5" SATA 6Gb/s, supports 4TB 7~15mm HDD
1 x M.2 2242 SATA supports 256GB~1TB SSD
Graphics Output
# of Displays Supported: 4
# of Thunderbolt™: Ports 2x Thunderbolt™ 4
Graphics Card Interface: Integrated
USB Configuration
Front I/O:
1xUSB 3.2 Gen2 Type-A (with BC1.2, 5V/0.9A, 10Gbps)
1xAudio Jack (Line out/Mic in/Headphone out)
1xUSB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
Side I/O: 1xKensington Lock slot
Rear I/O:
2xThunderbolt™ 4 (5V/3A, 40Gbps)
1xDC-in
1x2.5G RJ45 LAN
2xHDMI 2.1 (Up to 4K@60Hz)
1xUSB 2.0 (5V/0.5A)
1xUSB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
Audio: Front panel: 3.5mm headphone/mic jack
Integrated LAN: Intel® Ethernet Controller i226-V
Connectivity Type: Intel® Wi-Fi 6E AX211 (Gig+)
Bluetooth Version: 5.2
M.2 Card Slot (wireless): 22x30 (E)
TPM: TPM 2.0
Thermal Design Power: 40W
Power: 120W
Hardware Platform: Windows
Operating System: Windows
Included Components: 1 Adapter, Screws, 1 NUC Main Unit, 1 User Manual, Plate
VESA MOUNT: YES
Item Weight: 1 kg 450 g
Optional:
Laptop Internal Memory: Kingston KCP432SD8 16GB (DDR4/3200MHz/5Y)
SSD Drive: Kingston SKC3000 512GB (NVMe PCIe/Gen4x4 M.2 2280/7000MB/s Read / 3900MB/s Write)
Operating System Software: Microsoft Windows Pro 11 64Bit FQC-10528
Wireless Keyboard & Mouse Combo: Logitech MK240 (Black)
Monitor: Samsung LF24T370FWEXXV (23.8 Inch/Full HD/5ms/75Hz/250cd/m²/IPS)
