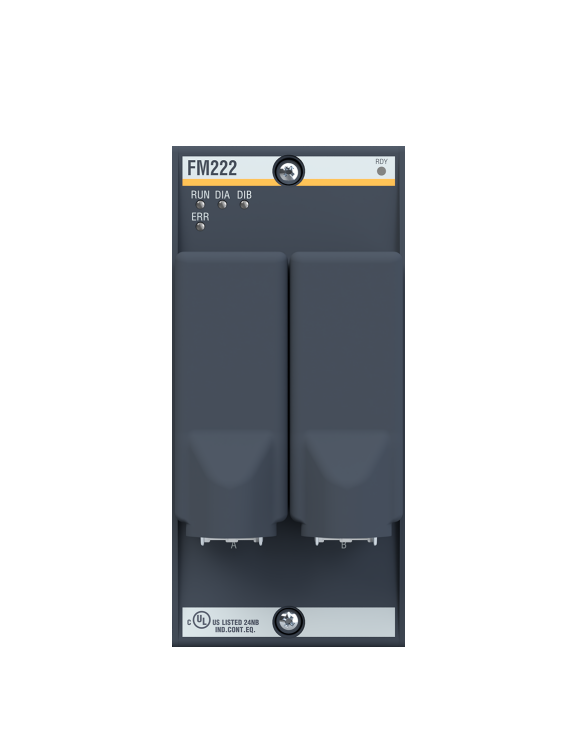

FASTBUS slave module with 2 FO interfaces
50/62.5 µm multi mode fiber
Up to 2000 m; LC connector
Integrated power supply 18.25 W
FASTBUS Interface
Cable length 2000 m between the stations
Total length max: 2300 m
Transmission medium Multimode fiber (50/125 μm and 62.5/125 µm) max. 2000 m
FOC connector type LC
FOC guide wavelength 1310 nm
Max. number of stations 16 (max. 10 per line)
Link budget > 8 dB (3 dB reserve)
Integrated power supply
Input voltage 24 V DC (18 V to 34 V)
Nominal power (Output) 18.25 W
Output current at +5 V 3000 mA
Output current at +15 V 250 mA
Output current at -15 V 200 mA
Diagnostics
Fiber optics – received light output
HW: three-color status LED
SW: 0 % – 100 %
Environmental conditions:
Standard:
Operating temperature: -30 °C to +60 °C
Relative humidity, operation: 5 % to 95 % noncondensing
Storage temperature : -40 °C to +85 °C
Relative humidity storage: 5 % to 95 % with condensation
Pollution degree (IEC 60664-1) 2 (noncondensing)
