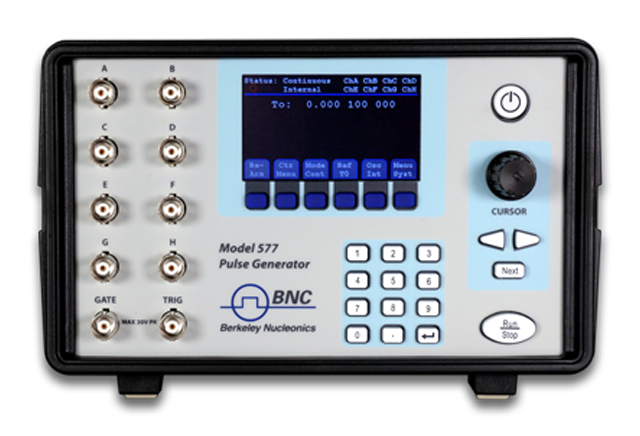

BNC 577-4C Digital Delay / Pulse Generator (4CH; 20 MHz; Jitter < 50 ps)

Channels: 4

Internal Rate Generator:

Rate (T0 period): 0.001 Hz to 20.000 MHz (1000 s – 50 ns)

Resolution: 5 ns

Accuracy: 5 ns + (0.0001 x period)

T0 Period Jitter: < 50 ps RMS

Time Base: 200 MHz, low jitter PLL

Oscillator: 50 MHz, 50 ppm crystal oscillator

System Output Modes: Single, Normal, Burst, Duty Cycle, External Gate/Trigger

Burst Mode: 1 to 10,000,000 pulses

Duty Cycle Mode: 1 to 10,000,000 pulses ON and/or OFF

Pulse Control Modes: Internally triggered, externally triggered or external gate.

Timing Generator:

Pulse Width Range: 10 ns -1000 s

Width Accuracy: 1 ns + 0.0001 x width setting

Width Resolution: 250 ps

Pulse Delay Range: 0 – 1000s

Delay Accuracy: 1 ns + 0.0001 x delay setting

Delay Resolution: 250 ps

Jitter (channel to channel): < 50ps RMS

Output Multiplexer: Any/all channels may be OR’d to any/all outputs

Time Base: Same as the internal rate generator

Channel Output Modes: Single, Normal, Burst, Duty Cycle

Burst Mode: 1 to 10,000,000 pulses

Duty Cycle Mode: 1 to 10,000,000 pulses ON and/or OFF

Wait Counts: 1 to 10,000,000 pulses

Channel Control Modes: Internally triggered or external gated. Each channel may be independently set to either mode.

Physical and Environmental:

External Clock Out: 10.5” x 8.25” x 5.5” [267 x 210 x 140mm]

Weight: 8 lbs [3.6 kg]

Power: 100 – 240 VAC 50/60 Hz <3 A

Fuse: 3.15 A, 250 V Time-lag (Qty 2)

Operating Temp: 32 – 104°F [0 – 40°C]

Transportation & Storage Temp: -40 – 158°F [-40 – 70°C]

Datasheet
