Body Type: Dead End

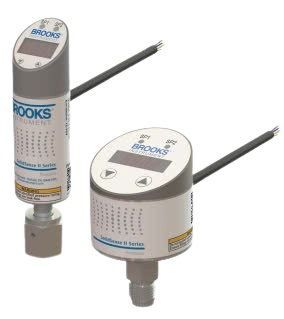

Pressure Transducer with Rotatable Display and Relays
Performance
Operating Temperature: -4°F to 140°F (-20°C to 60°C)
Storage Temperature: -40°F to 185°F (-40°C to 85°C)
Compensated Temperature: -4°F to 140°F (-20°C to 60°C)
Burst Pressure: 300% F.S. up to 5000 psi
Proof Pressure: 200% F.S. up to 5000 psi
Thermal Error - Zero or Span Ref 68°F: ±0.02% F.S./°F
Accuracy: ±0.25% F.S. (BFSL)
Response Time: 5 msec max.
Mechanical
Housing: Stainless Steel
Display Housing: Glass-filled Nylon 6
Display Faceplate: Polycarbonate
Wetted Parts: 316L stainless steel, SEMI F20 fitting and hastelloy C-276 sensor
Wetted Surface Finish: Compliant with SEMI F19 (316L)
Wetted Internal Volume: 0.1 cubic inch for GPD and GRD, 0.15 cubic inch for GRF
Approximate Weight: Varies with fitting 5-9.5 oz + cable 0.4 oz/ft
Gauge Reference Pressure Vent: Via cable and connectors
For more details, see datasheet.
