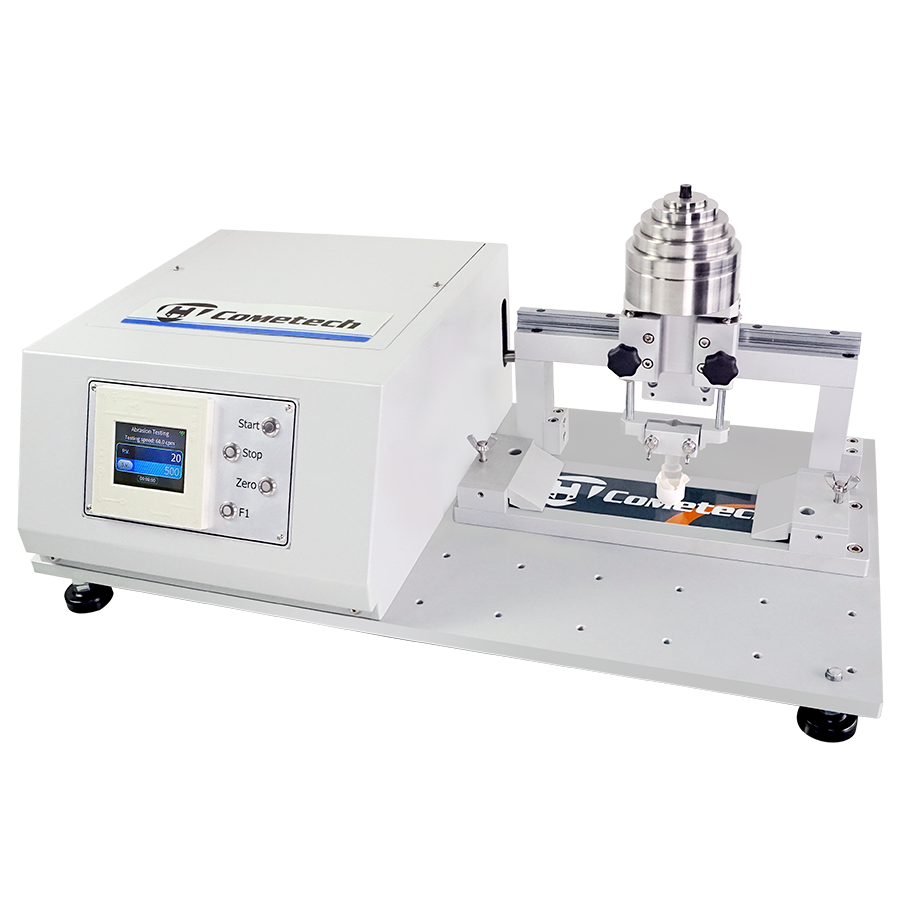

Cometech QC-622A Surface Hardness Abrasion Tester

Weight Set : 25 g × 1, 50 g × 1, 100 g × 1, 200 g × 1, 300 g × 1, 500 g × 1, 1000 g × 1

Base Load : 200 g

Abrasion Distance : 10 ~ 100 mm (Adjustment by hand)

Abrasion Head Mount : Ø6–12 mm

Abrasion Head (Optional) :

a. Abrasion head for cotton with Ø16 mm friction surface.

b. Abrasion head for steel wool with Ø16 mm friction surface.

c. Abrasion head for clamping pencil/eraser with Ø6.8 mm. (Clamp only)

Sample Size : Includes a standard clamping holder for samples up to 200 mm in length, 30 mm in width, and 5 mm in thickness.

Speed : 10~120 CPM ±2% (Allows for accurate setting)

Test Times : Can be set from 1 to 99,999,999 times, with automatic stop after test completion.

Power : Single Phase 100~240 VAC

Dimensions : 65 × 38 × 36 cm

Weight : 23 kg
