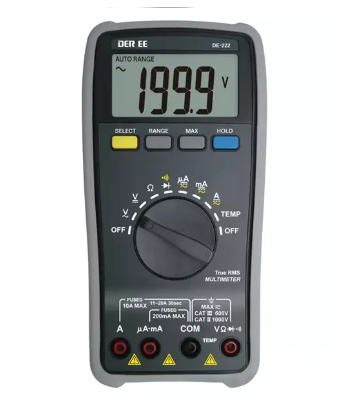

DEREE DE-222 Digital Multimeter (1000VAC/DC, 10AAC/DC, True RMS)

AC Voltage

Measurement range: 200.0 mV to 1000 V

Resolution: 0.1 mV to 1 V

Accuracy: ±(1.0% + 10 digits) to ±(1.0% + 5 digits)

Input impedance: Approx. 10 MΩ to 11 MΩ

Maximum input voltage: 1000 V rms

Sine wave frequency range: 40 Hz to 500 Hz

DC Voltage

Measurement range: 200.0 mV to 1000 V

Resolution: 0.1 mV to 1 V

Accuracy: ±(0.5% + 3 digits)

Input impedance: Approx. 10 MΩ to ≥100 MΩ

Maximum input voltage: 1000 V rms

Resistance

Measurement range: 200.0 Ω to 20.00 MΩ

Resolution: 0.1 Ω to 0.01 MΩ

Accuracy: ±(0.5% + 2 digits) to ±(1.5% + 3 digits)

Open circuit voltage: Approx. 0.4 V

Maximum input voltage: 1000 V rms

Continuity

Measurement range: 200.0 Ω

Resolution: 0.1 Ω

Buzzer indication: Sounds below approximately 90 Ω ± 40 Ω

Open circuit voltage: Approx. 0.4 V

Maximum input voltage: 1000 V rms

Diode Test

Measurement range: 1.000 V

Resolution: 0.001 V

Accuracy: 10%

Open circuit voltage: Approx. 1.5 V

Maximum input voltage: 1000 V rms

AC Current

Measurement range: 200.0 μA to 10.00 A

Resolution: 0.1 μA to 0.01 A

Accuracy: ±(1% + 5 digits)

Sine wave frequency range: 40 Hz to 500 Hz

Maximum input:

200 mA: 0.63 A/1000 V fuse

10 A: 10 A/1000 V fuse

DC Current

Measurement range: 200.0 μA to 10.00 A

Resolution: 0.1 μA to 0.01 A

Accuracy: ±(1% + 3 digits)

Maximum input:

200 mA: 0.63 A/1000 V fuse

10 A: 10 A/1000 V fuse

Temperature (K-Type Thermocouple)

Measurement range: −60°C to 600°C (−76°F to 1112°F)

Resolution: 1°C / 1°F

Accuracy: ±(1.0% + 3°C) / ±(1.0% + 4°F)

Operating conditions: 0°C to 50°C (32°F to 122°F), <80% RH (non-condensing)
