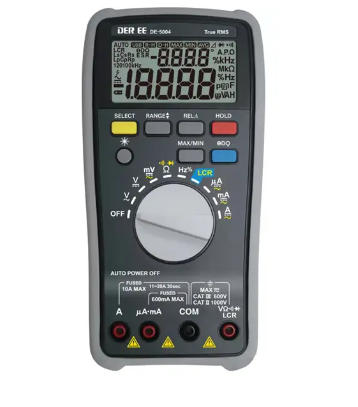

DEREE DE-5004 Digital Multimeter (1000VAC/DC, 10AAC/DC, True RMS)

Max. DC voltage: 1000 V (Accuracy: ±(0.1% + 3))

Max. AC voltage: 1000 V (Accuracy: ±(0.7% + 6))

Max. DC current: 10 A (Accuracy: ±(0.5% + 5))

Max. AC current: 10 A (Accuracy: ±(1.0% + 10))

Max. Resistance: 60 MΩ (Accuracy: ±(0.5% + 5))

Max. Resistance (LCR mode): 20 MΩ (Accuracy: ±(0.3% + 5))

Max. Capacitance: 6.00 mF (Accuracy: ±(0.3% + 5))

Inductance: 0.3 µH – 100.0 H (Accuracy: ±(1.0% + 5))

Frequency: 0.1 Hz – 20 MHz (Accuracy: ±(0.1% + 5))

True RMS: Yes

Display: 6000 counts

Measurement speed: 3 measurements/sec (DMM), 1 measurement/sec (LCR)

Measurement parameters: Ls/Lp/Cs/Cp/Rs/Rp with D/Q/θ

Test frequencies: 100 / 1k / 10k Hz

Other features: Data Hold, Min, Max, Diode/Continuity Test, Auto Power Off

Safety rating: IEC 61010-1 CAT III 600V, IEC 61010-1 CAT II 1000V

Power supply: 2 × 1.5V AA batteries

Weight: 400 g (without batteries)

Dimensions: 181 × 92 × 57 mm
