Application:
6V battery tests
12V battery tests (single, parallel pack, and serial pack)
12V start-stop battery tests (single, parallel pack, and serial pack)
12V and 24V cranking/charging system tests
Internal resistance tests
Supported Battery Types: Flooded, AGM Flat, AGM Spiral, EFB, VRLA/GEL
Supported Battery Ratings: CCA/SAE, EN, EN2, IEC, JIS, DIN, CA/MCA
Operating Range: 25 to 3,000 CCA(SAE) (single battery)
Voltage Range: 1V to 32V
Sensor Array: Temperature Sensor
Wireless Connection: –
Wired Connection: USB Type-A
Firmware Update: Yes (via PC Software)
Cloud Data Management: –
PC Software: Yes
Test Code and Test Counter: Yes (supports recall and print test results of the last 7 days)
Printer: 2-inch thermal printer
Display: Coloured TFT-LCD (240×320)
Input Device: 6-key keypad (up, down, left, right, enter, back)
Clamp-Cable Set Length: 4.5 metres (approx. 14.7 feet)
Detachable Cable: Yes
Internal Battery Support:
AA Alkaline/NiMH batteries
18650 Li-ion batteries
Voltage Probe: Supported (sold separately)
Amp Clamp: Supported (sold separately)
Dimensions (L × W × H): 285 × 140 × 75 mm (approx. 11.2 × 5.5 × 3 inches)
Operating Languages: English, French, Spanish, German, Italian, Portuguese, Polish, Dutch, Turkish (more languages possible)

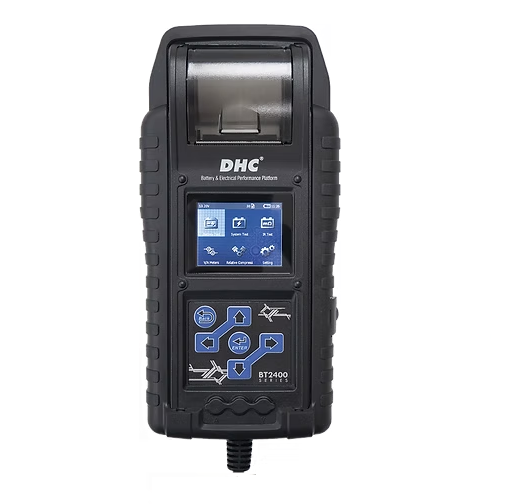

The BT2400 HD is the ideal tester for trucks, lorries, and heavy vehicles. With 24V battery and battery pack support, it can test a wide range of battery configurations, which includes single 24V batteries, 12V parallel packs, and 12V serial (24V) packs. This battery testing ability is coupled with our time saving testing algorithms and procedure, so you can get battery condition report more quickly.
Features:
Battery, Cranking, and Charging System Tester
6V, 12V, 12V Start-Stop and 24V Battery Test
12V, 24V Battery Pack Tests (12V par. & 12V ser.)
12V & 24V Cranking/Charging System Test
6V/12V Internal Resistance Test
TFT-LCD Display with Intuitive Graphical User Interface
USB Type-A wired Connection
Supports DHC Result Management Software
Update Firmware In-Field via PC Software
Flexible Integrated Battery Type: AA or 18650 Li-Ion
Thermal Sensor for Battery Temperature Detection and Compensation.
Built-in 2” Thermal Printer
Detachable/Replaceable 14.7’ Cable
Built-in Clamp and Cable Diagnostic Capability
Strong and Durable Heavy-Duty Case Design
Recall and Print Last 7 Days Test Results
Optional Amp Clamp and Voltage Probe
