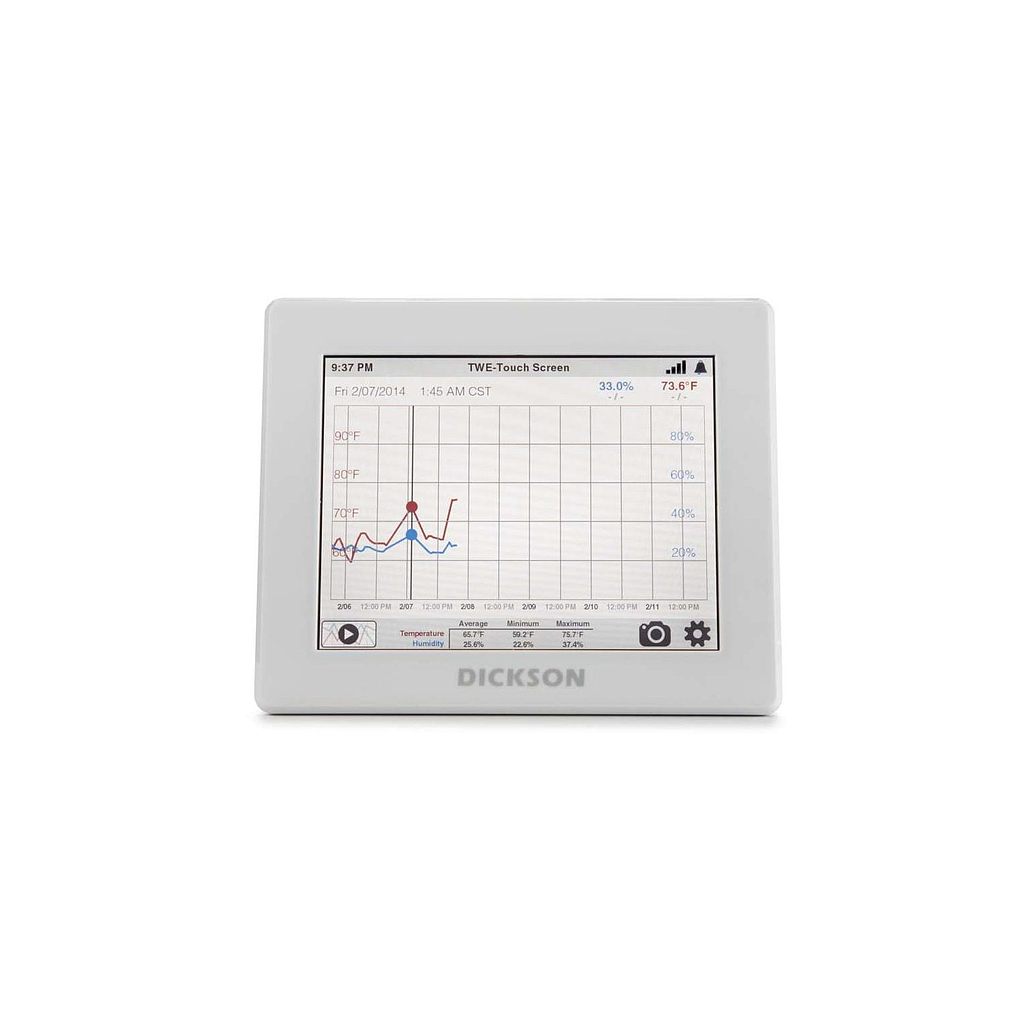

Dickson TWP Touchscreen

Alarm Type: Audible/Visual (Phone, Text, and Email Alarms via DicksonOne Subscription)

Ambient Operating RH Conditions: 0 to 95% RH non-condensing (Logger Only)

Ambient Operating Temperature Conditions: 32.0 to 140.0F (0.0 to 60.0C)

Antenna Type: Internal

Backup Battery: 72 Hours

Battery Type: Rechargeable Backup Battery

Cable Details: Up to 5 Probe Extensions (A898) can be used (50ft Total)

Calibration Options: N100, N300, N400, N995

Data Capacity: Approx 1,000,000 sample points (backup)

Dimensions: 8.5 x 1.75 x 7.0″ (21.0 x 4.5 x 18.0cm)

Display Dimensions: 8″ Diagonal

Display Type: LCD Touchscreen

Display Update Rate: Sample Interval Dependent (User Selectable)

Download Type: WiFi/Ethernet (DicksonOne Cloud), USB (must be formatted at FAT32)

Enclosure: Case Front: Polycarbonate; Case Back and Pods; ABS

Included Accessories: AC Adapter, Mounting Bracket and Kickstand

POE: Input Current Peak: (At 48V) 235mA

POE: Input Voltage Range: 36.0 to 57.0V

Mounting Options: Mounting Bracket (Included with Touchscreen)

PC Requirements: Windows 7 or more recent

Power Consumption: Up to 9W

Power Cord: 6 ft

Power Source: 100-240 VAC 50/60Hz 12V=1A

Required Software: DicksonOne SaaS Package, DicksonWare 2.0 (Data Export/View Only)

Resolution: LCD 800×600

Sample Interval: User Selectable Sample Intervals: 60, 90 seconds / 2, 5, 10, 15, 30, 60 minutes. (10 and 30 seconds optional, please call for details)

Sensor Type: Replaceable Sensor (See Accessories for more information)

Unit Weight: 1.45lbs
