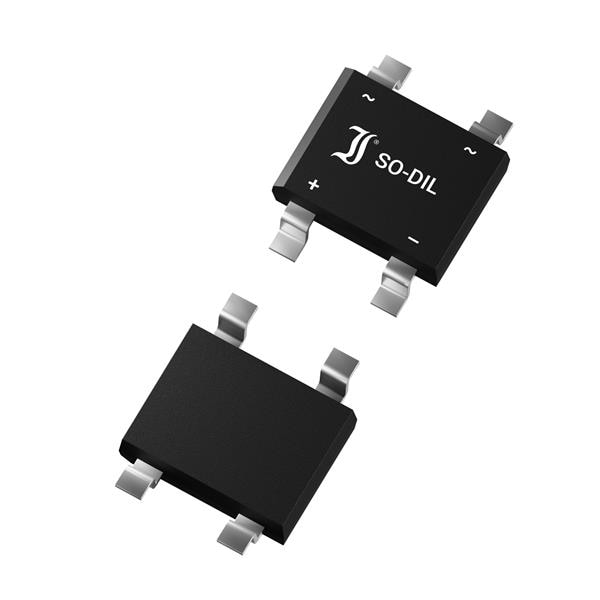

Diotec Semiconductor B80S15A Single Phase Bridge Bridge, single phase, SO-DIL SLIM, 160V, 1.5A, 150C

Width: 6.4 mm

Height: 2.5 mm

Length: 8.3 mm

Technology: Si

Unit Weight: 700 mg

Mounting Style: SMD/SMT

Max Surge Current: 45 A

Termination Style: Solder Pad

If - Forward Current: 1.5 A

Ir - Reverse Current: 5 uA

Peak Reverse Voltage: 160 V

Vf - Forward Voltage: 1.1 V

Vr - Reverse Voltage: 160 V

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 50 C
