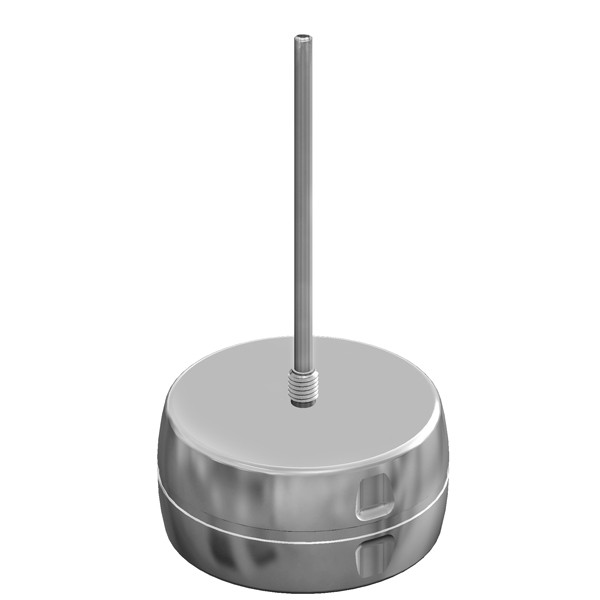

Product Description
Application sample For retort maintenance and Process monitoring
Temperature resistant up to +150 °C
High accuracy
Needle length 2000 mm, ø 3 mm
Completely waterproof Programming and evaluation with PC
Exchangeable battery Different versions available
Measuring range: -40 °C … +200 °C
Accuracy: ± 0,2 °C (0 °C … 150 °C) ± 0,3 °C (-40 °C … 0 °C) ± 0,5 °C > 150 °C
Resolution: 0,01 °C
Operating Temperature: -40 °C … 200 °C
Storage temperature: 0 °C ... +125 °C
Memory: 100,000 measurement values
Sensor: Pt 1,000, class A
Sample Rate: 1 s ...24 h
Measured variables: Temperature
IP Rating: IP68
Battery lifetime: Lithium battery (3,6 V), user replaceable
Dimensions: (Ø x H) 48 mm x 24 mm
Weight: approx. 110 g
Certificate: Factory calibration certificate
Options
- AL 100: Silicone protection box for EBI 10-T; Part No. 1340-6020
- Interface Set SI 2110: 4-fold Interface IF 200 for EBI 10, EBI 100, EBI 12; Part No. 1340-6095
- Interface Set SI 1200: 4-fold Interface IF 200 for EBI 12, EBI 10 and EBI 100; Part No. 1340-6062
- AL 104: Battery Set for EBI12 + EBI 16; Part No. 1100-0118
- AL 121 opening tool; Part No. 1100-0131
- Interface Set SI 2100: 2-fold Interface IF 100 for EBI 12, EBI 10, EBI 100 and EBI 11; Part No. 1340-6064
- Interface Set SI 1100: 2-fold Interface IF 100 for EBI 12, EBI 10, EBI 100 and EBI 11; Part No. 1340-6061
- EBI-KV3 Clamp connection for EBI 10-T230, 231, 232, 232 and EBI 100-T230, 231, 232, 233 data loggers; Part No. 1340-2005
