Connection: Bayonet
Maximum sample depth: 5m
Product material: Iron, other material
Sample diameter: 16/25/56 mm
Sample specification: Semi-disturbed
Sample length: 50/100 cm
Sample volume: 100-1770 ml
Package size: 117 x 27 x 23 cm
Weight: 23 kg
Applications:
Because of the minimal disturbance of the sample, the gouge auger is frequently applied in profile research for:
Soil mapping
Soil suitability reviews
Educational purposes
Root research
Soil sampling for fertilization research
Dry (clay) distribution research
Paleontological research
Environmental soil research
Description:
The gouge auger is made out of carbon steel strip, which is forged into its half cylindrical form with parallel cutting edges. Non-contaminating bare steel is used, no lacquers and no zinc plating.
The gouge augers can be extended by coupling an extension rod. This way samplings can be carried out in a very short time and greater depths can be reached. Please note that the set is not suitable for hammering. We recommend storing the set in a clean and dry place if you do not use it for a longer period of time.
Features:
Up to a depth of 5 metres
Three gouge diameters 60-30-20 mm
One-man operated bayonet connection
Very sturdy high tensile strength steel
Non contaminating bare steel, no lacquers no zinc plating

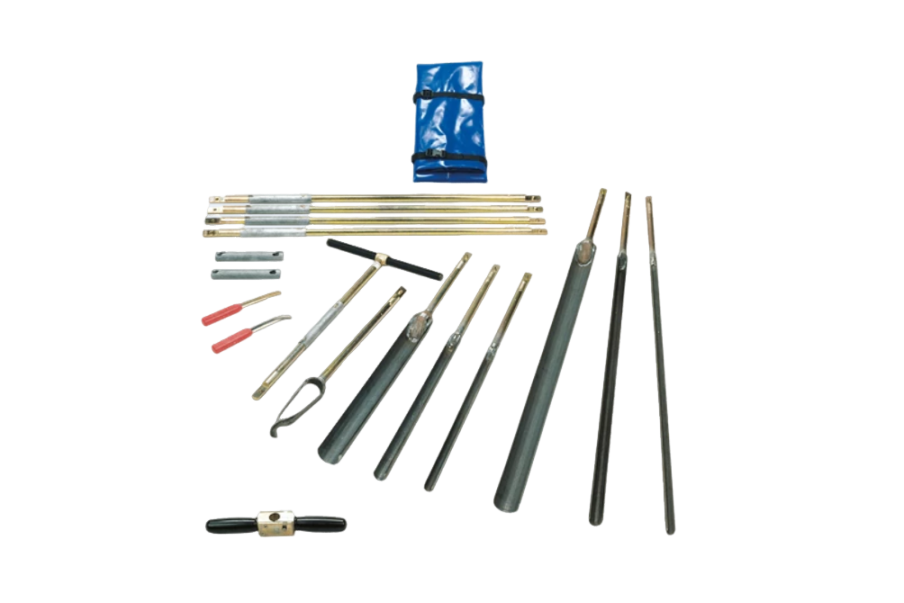

Set contains:
Gouge augers with various lengths and diameters of 60-30-20 cm
An Edelman auger for enlarging the hole and to drill through layers that are too hard for gouging
Extension accessories
Push-/pull handle
Strong carrying bag for transport in the field
Manual
Brochure
