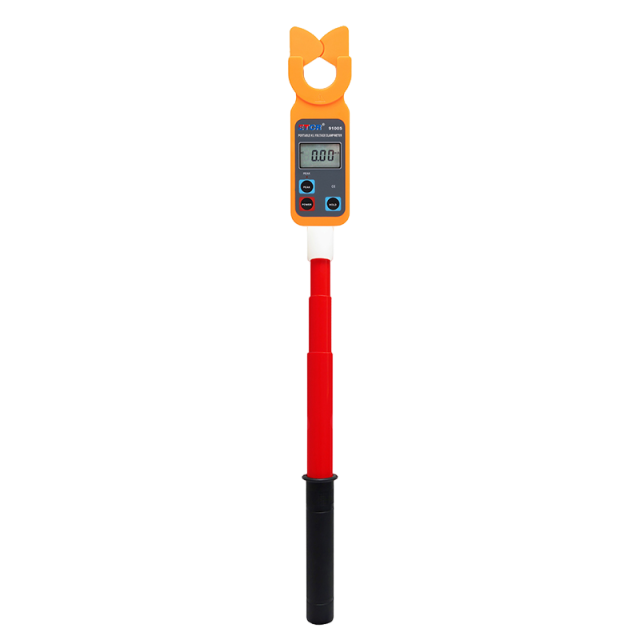

ETCR ETCR9100S Portable H/L Voltage Clamp Current Meter (Φ33mm, AC 0.00mA～600A) | EMIN.VN

ETCR ETCR9100S Portable H/L Voltage Clamp Current Meter (Φ33mm, AC 0.00mA～600A)

Name: ETCR ETCR9100S Portable H/L Voltage Clamp Current Meter (Φ33mm, AC 0.00mA～600A)
Brand: ETCR
Price: 7503262 VND
Availability: OutOfStock

ManufacturerETCR

ModelETCR9100S

Excl. VAT

7,503,262 VND

Incl. VAT

8,103,523 VND

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Power Supply: DC6V alkaline dry battery (1.5V AAA×4)

Display Mode: 4-digit LCD display, backlight function, suitable for dim place

LCD Size: 47mm×28.5mm

Measurement Method: Clamp CT, integration method

Transmission Mode: 433MHz Wireless transmission distance 30m

Clamp Jaw Size: Φ33mm

Measurement Range: AC 0.00mA~600.0A

Current Frequency: 50Hz/60Hz automatic

Solution: 0.01mA

Shift Gear: 0.00mA~600A Fully automatic shift gear

Test Accuracy:

0.00mA~100A: ±1%rdg±5dgt

101A~600A: ±2%rdg±5dgt

Memory: 99 groups, in storage process “MEM” symbol display, “FULL” symbol flicker indicate storage full

PEAK Hold: Automatically hold the test value at high point. Usually Press PEAK key in the test mode ,the PEAK lamp lights up. The peak hold function is enabled, press PEAK key again to cancel this function.

Line Voltage: Suitable for circuit testing with insulated skin below 10kV, and bare wire or busbar below 35kV.(Operation with insulating rod)

Data Hold: Press HOLD key to hold data in test mode, “HOLD" symbol display, press HOLD key again to cancel this function.

Data Access: "MR" symbol display, can look up all storage data

Sampling Rate: 2 times/second

Overflow Display: Exceed measure range overflow function:"OL A" symbol display

Automatic Shutdown: After 15 minutes power on, the meter shuts down automatically without any operation to reduce battery consumption

Battery Voltage: When battery voltage is lower than 4.8V, low battery voltage symbol display and remind to replace battery.

Meter Size: 72mm×245mm×39mm

Weight:

Meter: about 355g (include battery),

Receiver: about 330g(include battery),

Total weight: about 900g(include accessory)
