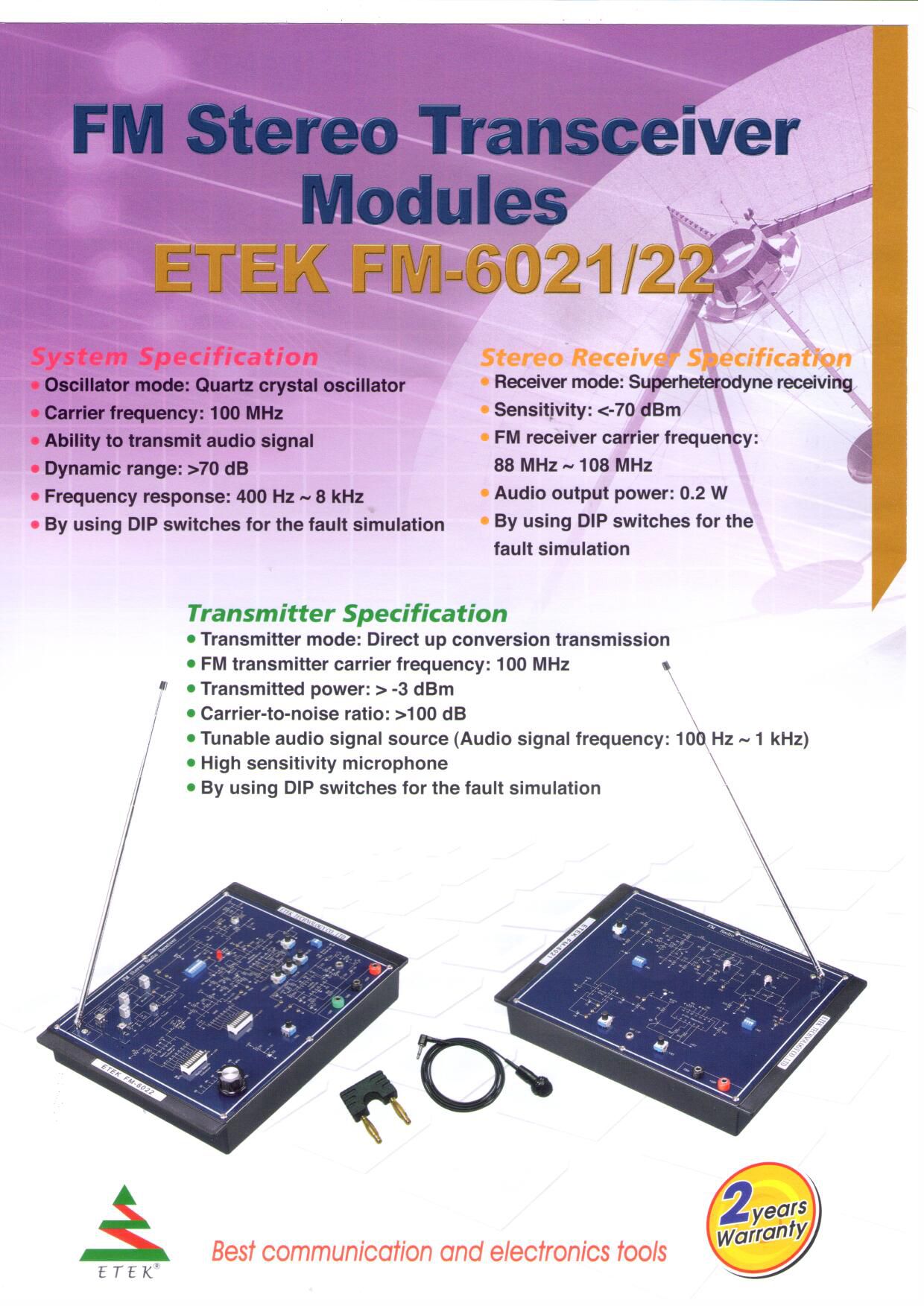

System Specification
1. Oscillator mode: Quartz crystal oscillator
2. Carrier frequency: 100 MHz
3. Ability to transmit audio signal
4. Dynamic range:>70 dBm.
5. Frequency response: 400 Hz ~ 8 kHz
6. By using DIP switches for the fault simulation
Transmitter Specification
1. Transmitter mode: Direct up conversion transmission
2. FM transmitter carrier frequwncy:100 MHz
3. Transmitted power:> -3 dBm
4. Carrier-to-noise ratio:> 100 dBm
5. Tunable audio signal source (Audio signal frequency: 100 Hz ~ 1 kHz)
6. High sensitivity microphone
7. By using DIP switches for the fault simulation
Stereo Receiver Specification
1. Receiver mode: Superheterodyne receiving
2. Sensitivity: <-70 dBm
3. FM receiver carrier frequency: 88 MHz ~ 108 MHz
4. Audio output power: 0.2 W (200 mW)
5. By using DIP switches for the fault simulation
Features
