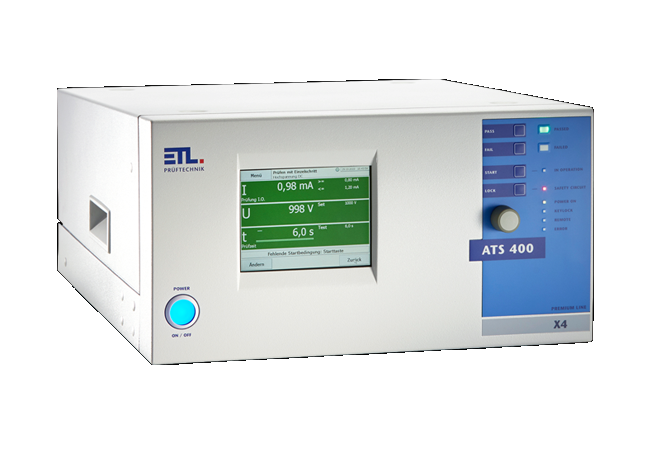

ETL Prüftechnik ATS400 X4 Automatic Test System (TFT colour display 5,7“ with touch function)

Test system with X4 operating variant for remote control via PC and for standalone operation:

- Test time adjustable from 0.5 s to 6000 s, infinite longer test time possible as an option

- dimensions: lxwxh = 400x525x215m

- incl. factory calibration certificate

The following applies to all HV / ISO modules:

- Monitoring of test leads for wire breakage (patented)

- Monitoring of contact with the test object (patented)

- fully electronic, including ramp function and monitoring the discharge

High voltage test, HV module HVA-AC50-100:

- Test voltage adjustable from 100-5000 V AC, potential-free

- Trigger current adjustable from 0.1-100 mA

- Frequency adjustable from 45-65 Hz

- Switching on the test voltage in the zero voltage crossing

- Transformer power> 500 VA, short-circuit current> 200 mA

- with active discharge

- suitable for operation with test pistols, according to EN 50191

High voltage test, HV module HVD-DC70-70:

- Test voltage adjustable from 150-7000 V DC, potential-free

- tripping current adjustable from 0.1-70.0 mA

- Transformer power> 500 VA, short-circuit current> 200 mA

- with passive discharge

- suitable for operation with test pistols, according to EN 50191

Insulation resistance measurement, ISO module ISO-DC70:

- Test voltage adjustable from 150-7000 V DC, potential-free

- Resistance limit values adjustable from 0.5-400 MOhm

- with passive discharge

- suitable for operation with test pistols, according to EN 50191

R module DC4 measuring ranges 200µOhm - 2 MOhm:

- Resistance measurement module in 4-wire measurement technology

- Measuring current of 1µA-2 A

- Resistance limit values for min and max threshold adjustable

- Automatic measuring range selection, optionally fixed measuring range

- Resolution in the lowest measuring range 0.01 µOhm

- contact monitoring

- Measurement input protection against induction voltages and

External voltage up to 440 V effective

Datasheet
