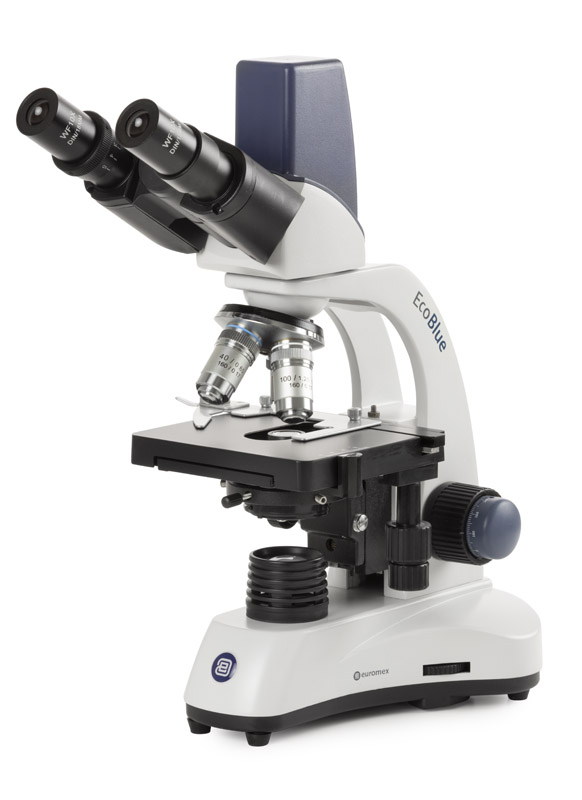

Secured DIN WF 10x/18 mm eyepiece
Binoocular head, 30° inclined, 360° rotatable
Built-in 5 MP CMOS camera with USB-2 interface, 2560 x 1920 pixels
Supplied with ImageFocus Plus software
Forwarded quadruple revolving nosepiece on ball-bearings
Achromatic 4x, 10x, S40x, S100x oil immersion objectives
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Coaxial coarse and fine adjustments with 200 graduations. Precision 12.5 μm, 2.5 mm per rotation. Total travel approximately 15 mm. Friction adjustment
Plain 123 x 128 mm stage with integrated 70 x 27 mm X-Y mechanical stage
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
1 W LED illumination with internal power supply 100-240 V (CE)
Paint with Antibacterial Protection Layer
Supplied with power cord, dust cover and 5ml immersion oil in styrofoam case
