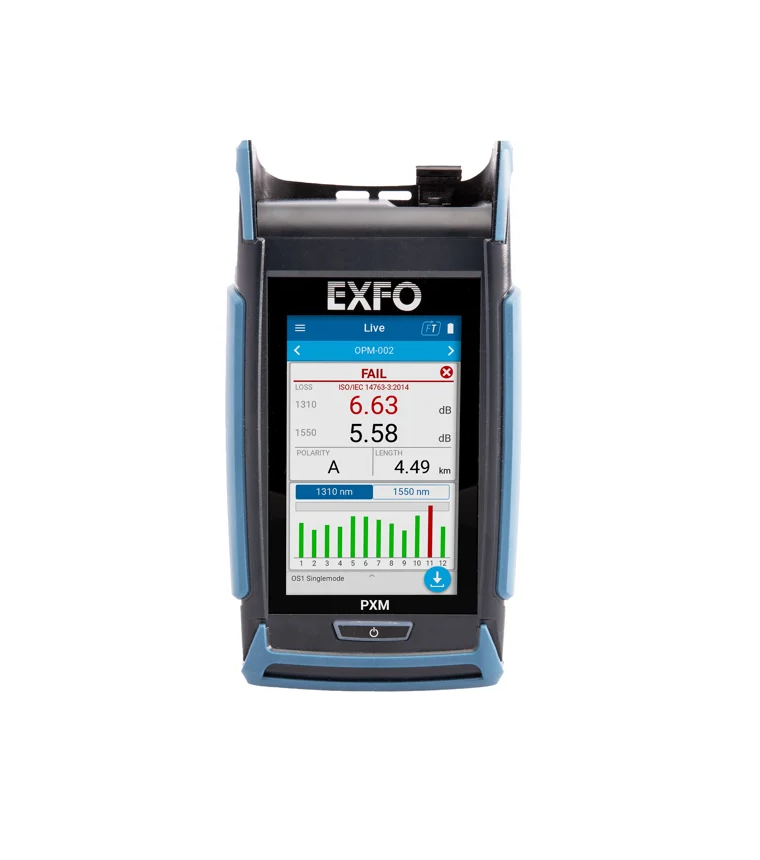

PXM POWER METER SPECIFICATIONS
Optical connector: Contactless MPO-12 male (pinned) supporting both APC and UPC. Connector with protective shutter.
Detector type: InGaAs
Power measurement range (dBm): 5 to –45
Power uncertainty (dB) : ±0.35
Linearity (dB) : ±0.1
Display resolution (dB): 0.01
Wavelength measurement range (nm): 850 to 1550
Calibrated wavelengths (nm): 850, 1300, 1310, 1550
Tone detection: 270 Hz, 330 Hz, 1 kHz, 2 kHz
Auto-wavelength recognition and switching: Yes
Length measurement: Up to 25 km depending on conditions with single mode and 1 km with multimode
Warm up time (s): 0
Storage capacity: 10,000 measurements at two wavelengths
