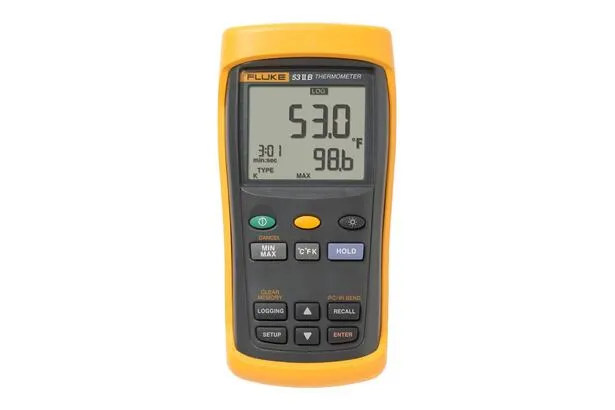

FLUKE FLK-53-2 B 60HZ/APAC Single Input Digital Thermometer with Data Logging (60Hz)

Temperature Accuracy

Above -100°C :

J, K, T, E, and N-type: ±[0.05% + 0.3°C]¹

R and S-type: ±[0.05% + 0.4°C]¹

Below -100°C :

J, K, E, and N-type: ±[0.20% + 0.3°C]¹

T-type: ±[0.50% + 0.3°C]

Temperature Range

J-type : -210°C to 1200°C

K-type : -200°C to 1372°C

T-type : -250°C to 400°C

E-type : -150°C to 1000°C

N-type : -200°C to 1300°C¹

R and S-type : 0°C to 1767°C¹

Temperature Scale : ITS-90

Applicable Standards : NIST-175

Display Resolution :

0.1°C, 0.1 K < 1000

1°C, 1 K ≥ 1000

Note :

¹ Only the Fluke Models 53 II B and 54 II B thermometers are capable of measuring N, R, and S-type thermocouples.

Environmental Specifications

Operating Temperature : -10°C to 50°C

Storage Temperature : -40°C to 60°C

Humidity (without condensation) :

0% to 90% (0°C to 35°C)

0% to 70% (0°C to 50°C)

Safety Specifications

Overvoltage Category : CSA C22.2 No. 1010.1:1992; EN 61010 Amendments 1, 2

Agency Approvals : CE, CSA, TÜV (pending)

Mechanical and General Specifications

Dimensions (L × W × D) : 173 × 86 × 38 mm

Weight : 400 g

Batteries : 3 AA batteries, typical battery life 1000 hours
