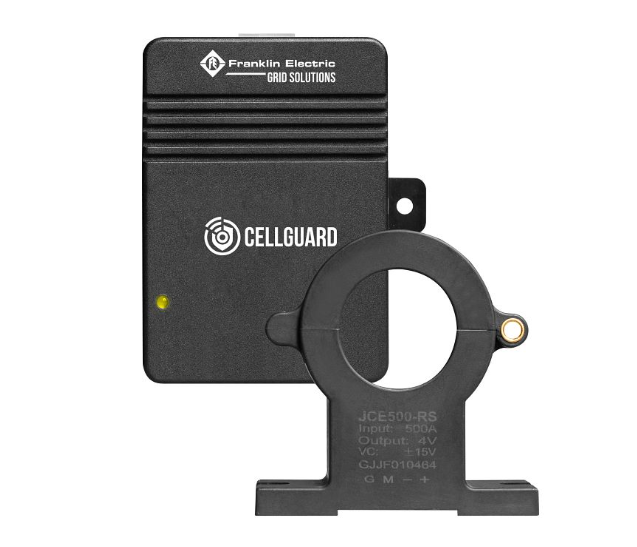

CELLGUARD™ wired battery monitoring string sensor module with ambient temperature sensor, 600V maximum, includes current transducer
Included in the Kit
+ Temperature/Current (TC) Module
+ Current Transducer
+ Interconnect Return Cable, 8 meter, with RJ22 plugs
+ Spare RJ22 plugs (qty 18)
+ Interconnect Cable, 30 cm, with RJ22 plugs
+ Current Transducer Cable with Temperature Sensor
Operating temperature: -10°C to 50°C
Humidity: 5% to 95%
Monitoring Capability:
+ Maximum batteries on a single String: 180
+ Control module string maximum: 6
+ Control module battery maximum: 360
Battery types: 1.2V, 2V, 6V, 12V (capacity less than 3000AH)
Insulation: 2000 VAC
Weight (String Sensor): 80 g
Controller Module Communication Interfaces
+ Serial Comm. Port: RS485 Modbus/RTU
+ RJ45 Ethernet Comm. Port: SNMP, Modbus/TCP
+ RJ22 Module Comm. Port: COM1-COM3 UART
Power Requirements:
String sensor: 10.8 to 13.8VDC, 2W, power from control module
