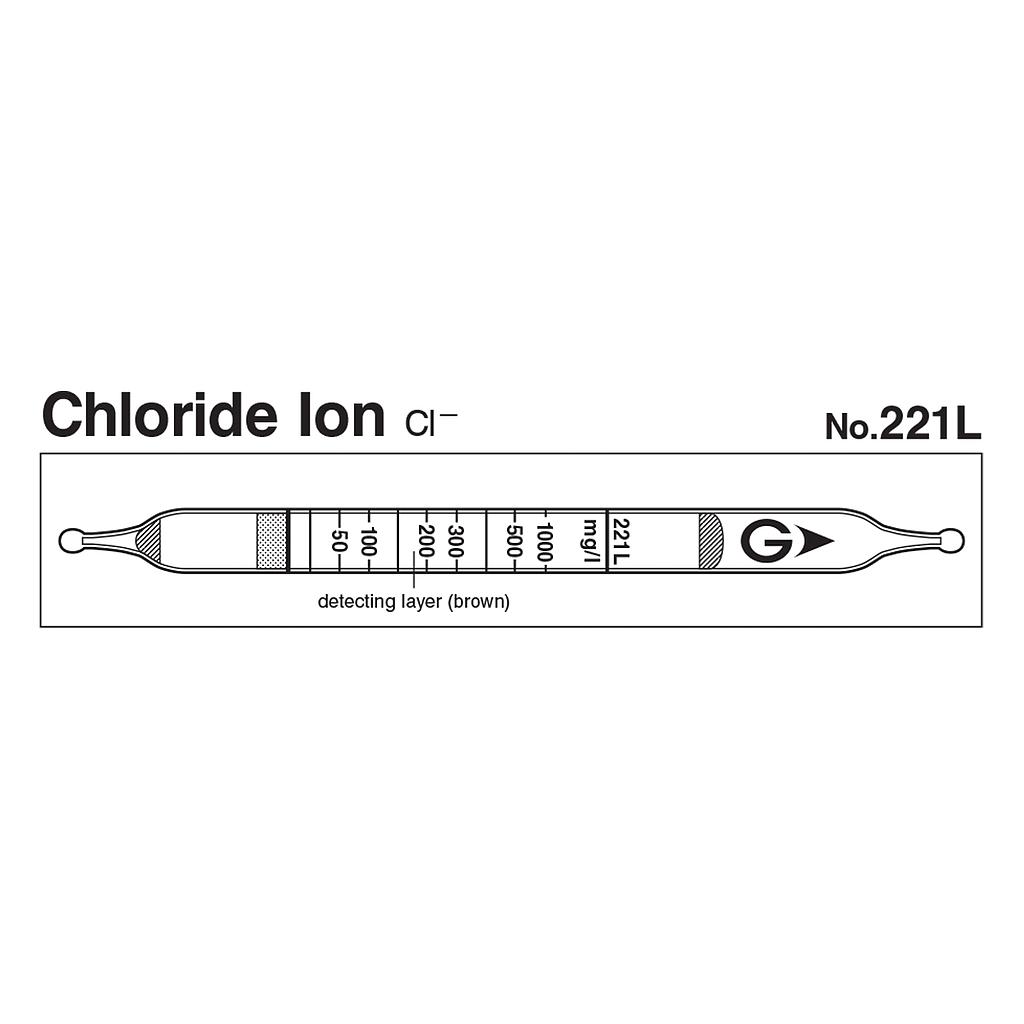

Indicator: 50 ~ 1000 mg/L
Measuring Range: 25 ~ 1000 mg/L
Sampling Time: 3 minute
Colour Change: Brown → White
Reaction Principle: 2Cl- + Ag2CrO4 → 2AgCl
Nr. of tests: 10
Catalog
Performance
| Measuring Range |
(25) to 1000 mg/L |
| Sampling Time |
3 minutes |
| Detecting Limit |
1 mg/L |
| Colour Change |
Brown → White |
| Reaction Principle |
2Cl- + Ag2CrO4 → 2AgCl |
| Shelf Life |
3 Years |
| Corrections for temperature & humidity |
Unnecessary |
| Store the tubes at cool and dark place. |
Possible coexisting substances and their interferences
(NOTE)
| Substance |
Concentration |
Interference |
Change colour by itself to |
| CN- |
≧ 1 mg/L |
+ |
White |
| Br- |
≧ 10 mg/L |
+ |
White |
| SCN- |
≧ 30 mg/L |
+ |
White |
| Fe2+ |
≧ 200 mg/L |
 |
No (≦ 1000 mg/L) |
| Fe3+ |
≧ 200 mg/L |
 |
White |
| F- |
≧ 500 mg/L |
 |
No (≦ 1000 mg/L) |
| I- |
≧ 50 mg/L |
+ |
White |
| S2- |
≧ 5 mg/L |
+ |
Blackish gray |
| SO42- |
≧ 2000 mg/L |
 |
White |
Other substance measurable with this detector tube
| Substance |
Correction Factor |
Measuring Range |
Detector tubes for dissolved substances
(i.e. in solution).
Dissolved sulphide detector tube
211H / 211M / 211 / 211LL

|
 |
Liquid detector tube
| Ozone: |
218 |
| Chloride ion: |
221L / 221LL |
| Mercury: |
271 |
| Hexavalent chromium: |
273 |
| Bivalent iron: |
281 |
| Copper: |
284 |
| Zinc: |
285 |
| Nicke: |
291 |
|
To measure, simply immerse the detector tube in a sample of liquid (placed in a beaker or other container). Anyone can measure concentrations quickly, easily and accurately on site.
* Adjustment for pH is required when measuring with liquid detector tubes.
