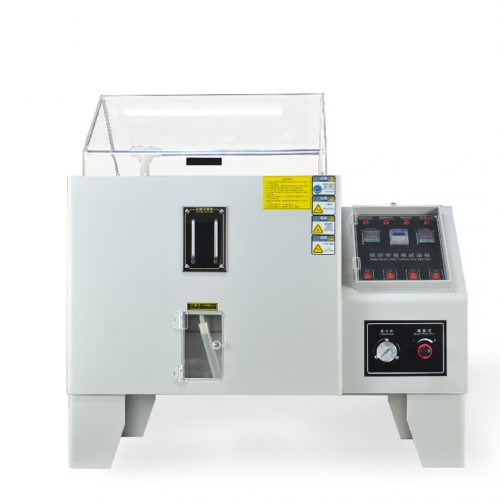

It aims at determining the product corrosion resistance after various kinds of materials surface suffering electroplating, anodizing, painting, rust-proof oil corrosion resistance treatment
Inside Chamber Dimension(WxDxH cm): 90x60x50
Outside Chamber Dimension(WxDxH cm): 141x88x128
Test Chamber Volume: 270L
Brine Tank: 25L
Control Method: LED Meter
Plastic Plate Thickness: 5mm
Temperature of Test Chamber: Brine test method 35℃±1℃
Temperature of Pressure Barrel: Brine test method 47℃±1℃
Brine Temperature: 35℃~ 50℃
Brine Concentration: 5% sodium chloride solution concentration
Compressed Air Pressure: 1.00±0.01kgf/cm2
Spray Volume: 1.0~2.0ml/80cm2/h(gather at least 16 hours, take its average)
Relative Temperature of Test Chamber: Above 85%
PH-value: Neutral: 6.5~7.2
Spray Method: continuous spray or intermittent spray
Temperature Range:
Laboratory temp.: 35℃- 50℃(can be arbitrarily set)
Pressure barrel temp.: 47℃- 63℃(can be arbitrarily set)
Temperature Rising Speed:
Laboratory: Room temperature →35℃ about 35 minutes
Pressure barrel: Room temperature →47℃ about 15 minutes
Temp. accuracy: ±1℃
