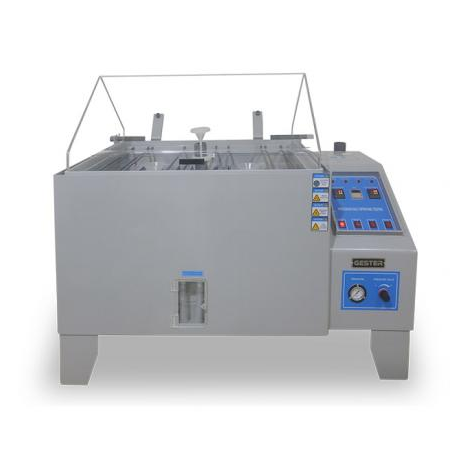

It aims at determining the product corrosion resistance after various kinds of materials surface suffering electroplating, anodizing, painting, rust-proof oil corrosion resistance treatment.
Inside Chamber Dimension(WxDxH cm): 120x100x50
Outside Chamber Dimension(WxDxH cm): 190x130x140
Test Chamber Volume: 600L
Brine Tank: 40L
Control Method: Touch Screen
Plastic Plate Thickness: 8mm
Temperature of Test Chamber:
Brine test method 35℃±1℃
Corrosion resistance test method (CASS)50℃±1℃
Temperature of Pressure Barrel:
Brine test method 47℃±1℃
Corrosion resistance test method (CASS)63℃±1℃
Brine Temperature: 35℃~ 50℃
Compressed Air Pressure: 1.00±0.01kgf/cm2
Spray Volume: 1.0~2.0ml/80cm2/h(gather at least 16 hours, take its average)
Relative Temperature of Test Chamber: Above 85%
PH-value:
Neutral: 6.5~7.2;
Acidic: 3.0~3.2
Spray Method: continuous spray or intermittent spray
Temperature Range:
Laboratory temp.: 35℃- 50℃(can be arbitrarily set)
Pressure barrel temp: 47℃- 63℃(can be arbitrarily set)
Temperature Rising Speed:
Laboratory: Room temperature →35℃ about 35 minutes
Pressure barrel: Room temperature →47℃ about 15 minutes
Temp. accuracy: ±1℃
