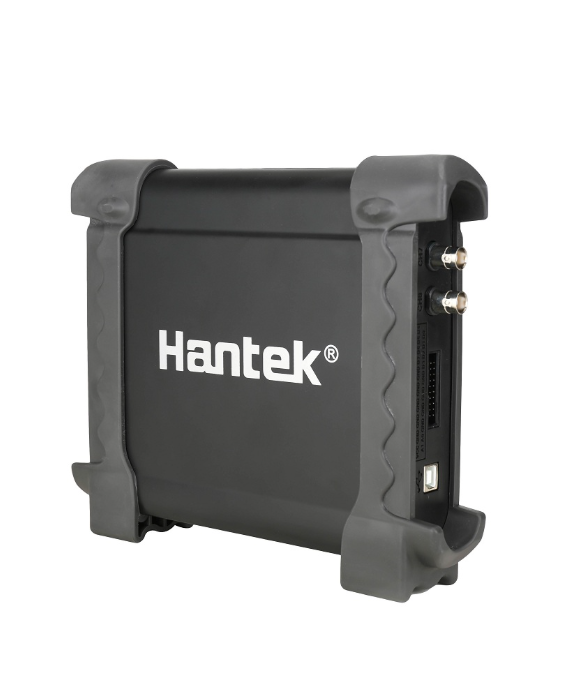

Hantek 1008C Oscilloscope (8CH, 0-250kHz, 2.4 MSa/s)

Analog Channels: 8

Input Impedance: Resistance: 1 MΩ

Input Sensitivity: 10 mV/div to 5 V/div

Input Coupling: DC

Resolution: 12 bits

Memory Depth: 4K

Max. Input: 400 V (DC+AC Peak)

Real-Time Sampling Rate: 2.4 MSa/s

Time Base Range: 1 ns/div to 20,000 s/div (1-2-5 sequences)

Time Base Precision: ±50 ppm

Trigger Source: CH1, CH2, CH3, CH4, CH5, CH6, CH7, CH8

Trigger Mode: Edge

X-Axis Input: CH1

Y-Axis Input: CH2

Voltage Measurement: Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot

Time Measurement: Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

Cursor Measurement: Horizontal, Vertical, Track, Auto Measure Modes

Waveform Signal Processing: +, -, ×, ÷, FFT, Invert

Voltage Range:

10 mV to 5 V/div @ ×1 probe

100 mV to 50 V/div @ ×10 probe

10 V to 5000 V/div @ ×1000 probe

100 V to 50,000 V/div @ ×10,000 probe

200 mV to 100 V/div @ 20:1

Current Range:

100 mA to 50.0 A/div @ CC65 (20 A)

1000 mA to 500.0 A/div @ CC65 (65 A)

1 A to 100.0 A/div @ CC650 (60 A)

1 A to 200.0 A/div @ CC1100 (100 A)

10 A to 2000.0 A/div @ CC1100 (1100 A)

FFT: Rectangular, Hanning, Hamming, Blackman Window

Math: Addition, subtraction, multiplication, division

Interface: USB 2.0 (Full Speed)

Power: No additional power supply required

Size: 190 × 167 × 35 mm

Weight: 0.63 kg

High-Voltage Ignition Probe: 1

Programmable Signal Generator: 8 channels

Output Level: LVTTL

Frequency Range: 0–250 kHz
