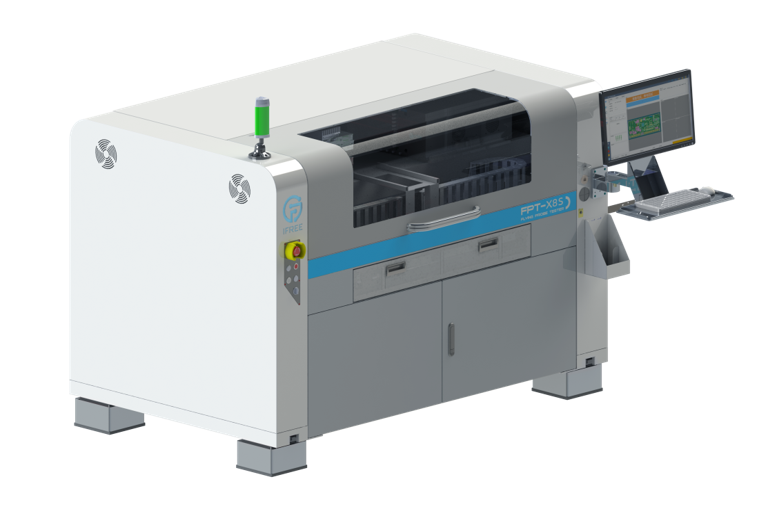

IFREE FPT-X8S Double-Sided 8-Probe Flying Probe Tester

Spec:

Min. Pad Size (Glass Calibration): 30 μm

Min. Pitch (Glass Calibration): 75 μm

Max Product Size: 650 mm x 550 mm

Min Product Size: 10mm x 10mm

Max Test Range: 620 mm x 525 mm

Max Board Thickness: 10 mm

Probe Quantity & Layout: 8 Probes (Top: 4, Bottom: 4)

Soft-Touch Probe Force: 5 g - 10 g

Micro Probe Force: 0.3 g - 2.5g

Overall Test Speed: Up to 220 TP/sec

Position Feedback Resolution: ± 0.1 μm

Positioning Repeatability: ± 4 μm

Camera Quantity: 4

Camera Resolution: 3 μm/pixel

Test Capability :

DC Constant Current Resistance: 100.0 μΩ ~100.0 kΩ

DC Constant Voltage Resistance: 100.0 Ω ~ 100.0 MΩ

AC Constant Voltage Capacitance: 10.00pF ~ 100.0μF

AC Constant Voltage Inductance: 1.000 μH ~ 1.000 mH

Static Capacitance: 100.0fF ~ 10.00μF

Open Circuit: 4.000 Ω ~ 4.000 MΩ

Short Circuit: 400.0 mΩ ~ 40.00 kΩ

Insulation Resistance: 1.000kΩ~100.0GΩ

High Voltage Resistance: 1.000kΩ~100.0GΩ

Leakage Current: 1.000μA~100.0mA

Precision Resistance Measurement: Kelvin 4-Wire Measurement

Others:

Equipment Dimension (L×W×H): L1850 * W1250 * H1450 mm

Weight: 1800kg

Power Supply: 3-Phase 380 VAC, 50/60 Hz, 12 kVA

Frame: Steel Structure + Marble Base

Operating Environment: Temperature: 25 ℃ ±10 ℃ / Humidity: 30% - 70%

Compressed Air: 8 bar / 115 psi, filtered

Products Details

1. Dual-side 8-probe layout

2. 8-probe parallel testing for ultra-high efficiency

3. Linear motor drives with marble base for high-speed, high-precision, and stable operation

4. Proprietary measurement module for ultimate test accuracy

5. Fixtureless design for rapid changeover and high product compatibility

6. Intelligent soft-landing technology
