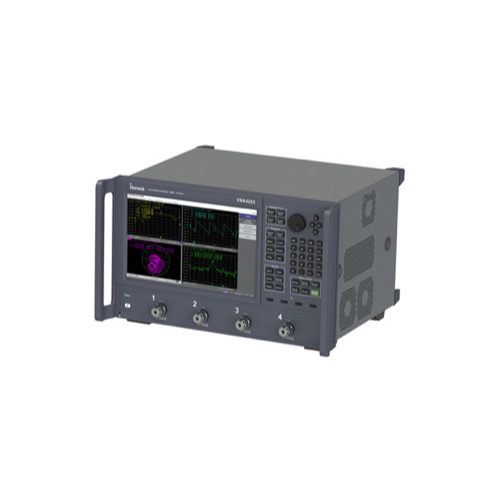

Frequency Range: 100kHz to 26.5GHz
Number of Test Ports: 2 or 4
Test Port Connector Type: NMD 3.5mm, male
Output Power Range:
100kHz ~ 2MHz: -55 dBm to -10 dBm
2MHz ~ 26.5GHz: -55 dBm to +10 dBm
System Impedance: 50Ω
Frequency Setting Resolution: 1Hz
Power Setting Resolution: 0.05 dB
Number of Measurement Points: 2 to 20,001
System Bandwidth (IFBW): 10Hz to 1.5MHz
System Dynamic Range (RF Range Fixed Mode = OFF, @IFBW = 10Hz):
100kHz to 500kHz: 95dB
500kHz to 2MHz: 110dB
2MHz to 5.8GHz: 135dB
5.8GHz to 26.5GHz: 132dB
