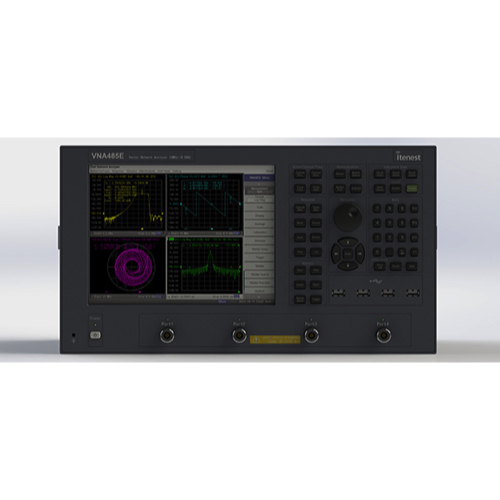

SYSTEM MEASUREMENT RANGE
Frequency Range: 100kHz to 8.5GHz
Number of Test Ports: 2 or 4
Test Port Connector Type: NMD 3.5mm, male
Output Power Range:
100kHz to 2MHz: -55dBm to -10dBm
2MHz to 8.5GHz: -55dBm to +10dBm
System Impedance: 50Ω
Frequency Setting Resolution: 1Hz
Power Setting Resolution: 0.05 dB
Number of Measurement Points: 1 to 20,001
System Bandwidth (IFBW): 10Hz to 1.5MHz
System Dynamic Range (RF Range Fixed Mode = OFF, @IFBW = 10Hz):
100kHz to 500kHz: 95dB
500kHz to 2MHz: 110dB
2MHz to 8.5GHz: 135dB
MEASUREMENT ACCURACY (UNCERTAINTY)
Trace Noise: Meas. Power = Max Output Power
Transmission:
100kHz to 10MHz (IFBW = 3kHz): 4mdB rms / 0.03° rms
10MHz to 8.5GHz (IFBW = 70kHz): 3mdB rms / 0.03° rms
Reflection:
100kHz to 10MHz (IFBW = 3kHz): 5mdB rms / 0.05° rms
10MHz to 8.5GHz (IFBW = 70kHz): 3mdB rms / 0.05° rms
