Function: Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Mid-stripping, Wire lack sensor, Length correction, Thermal transfer printer
Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Cable size: 2 - 10 mm O.D.
Cutting length (L): 0.1 - 999999 mm
Cutting length accuracy: 0.002 x L
Single wire: YES
Outer jacket stripping length: Leading (right) side: 250 mm, Trailing (left) side: 80 mm
Inner core stripping length: 30 mm at dual-ends
Production rate: 1000 pcs/h by 100mm wire length [multi-layer stripping]
Data library: 100 programs
Feeding unit: Belt
Display: 7" color touchscreen, English/Chinese [other languages on request]
Compatible peripherals: Cable prefeeder & dereeler, robot arm, conveyor belt
Power supply: AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply: 0.4 - 0.7 MPa (clean and dry air)
Dimensions: Machine: L 630 x W 570 x H 540 mm, Wire straightener: 350 mm
Weight: 78 KG

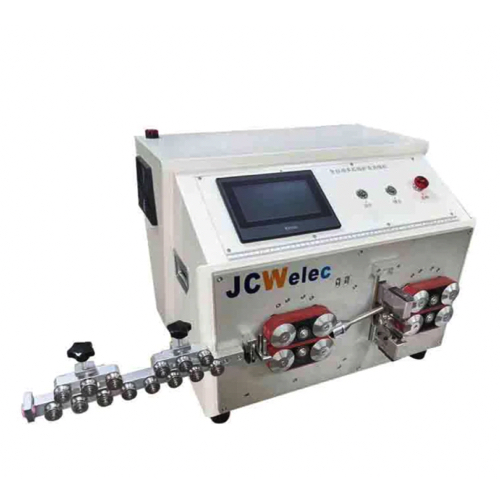

• Fully programmable bench-top cut & strip machine
• High performance for multicore cable up to 10mm OD
• High-speed 1000 pcs/h with stripping double ends
• High-quality belt feeding system
• Save 100 programs with names
• Automated length calibration
• Cable run-out sensor
