Function: Single wire, multicore cable, coax cable, cut length, cut depth, data library, workbench
Cable diameter: 1.0 - 6.0 mm [1.5-8.5 Customizable]
Cutting length (L): 50-9999 mm
Cutting accuracy: L ± 1%
Cut depth increment: 0.01 mm [PVC insulation]
Stripping length:
Lead side: max 100 mm
Rear side: max 45 mm
Stripping length increment: 0.01 mm
Stripping steps: 6
Product rate: 350 - 900 pcs/h [Depending on cable type]
Data library: 40 programs
Power supply: AC 110 - 220 V ± 10%, 50 / 60 Hz
Rated power: 800 W
Display: English / Chinese [customizable]
Dimensions: L 790 x W 730 x H 400 mm
Weight: 120 KG
• High-precision cutting accuracy 0.1mm
• Rotary cutter head, wide cable range
• Cable diameter ranging from 1.0 to 6.0mm
• Customizable to 8.5mm diameter coax cable

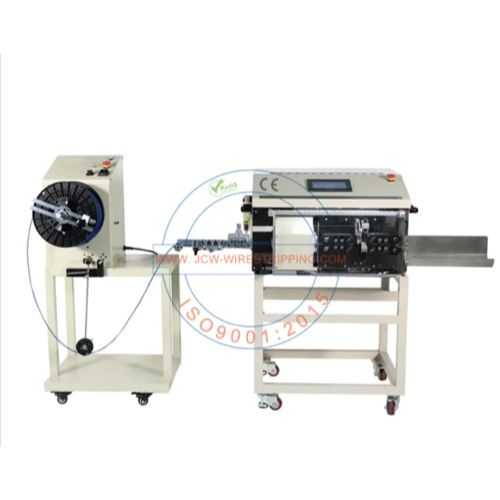

• Automatic product line, professional cable prefeeder
