Function: Single wire, Multicore cable, Wire measuring, Cut length, Full stripping, Partial stripping, Mid-stripping, Cut depth, Wire run-out sensor, Length correction
Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections: Max 2.5 mm² x 4 wires
Cutting length (L): 0.1 - 999999 mm
Cutting length accuracy: 0.002 x L
Stripping length:
Front (right) side: 150 mm [partial stripping]
Rear (left) side: 70 mm [partial stripping]
Middle strip: 13 sections
Production rate: 10000 pcs/h by 100 mm wire length
Data library: 100 programs
Display: 4.3" color touchscreen, English / Chinese [other languages on request]
Cable feeding: 6 rollers
Compatible peripherals: Cable prefeeding unit, robot arm, cable stacker
Power supply: AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply: 0.4 - 0.7 MPa (clean and dry air)
Dimensions:
Machine: L 560 x W 470 x H 370 mm
Wire straightener: 250 mm
Weight: 45 KG
CE-Conformity: Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility

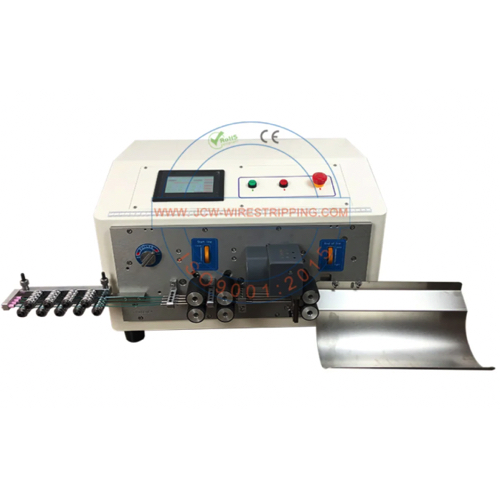

• Single wire model of CS06
• Process 4 single wires in one work step
• Each wire max 2.5mm²
• High productivity, increased efficiency
