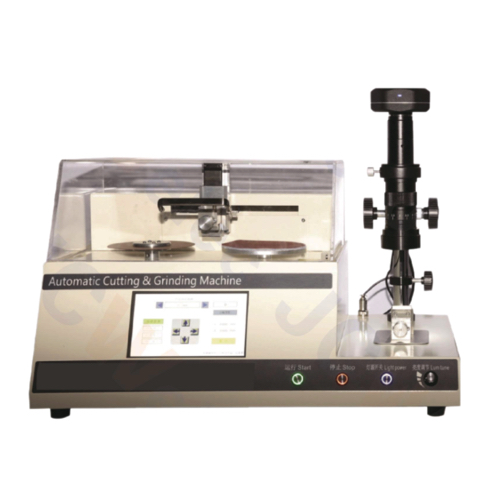

Analyzer: Imported continuous variable power optical system, objective lens magnification 0.7-4.5X
Video total magnification: 65~419X
Wire range: AWG4/0-AWG46 (0.008-120 mm²)
Clamp diameter: Max 20 mm
Accuracy: ±2 µm
Cutting blade: Ф125 x 0.5 mm
Cutting and grinding time: 5-45 seconds
Polishing sandpaper: 125 mm/1500#
Standard optical device: 0.1/10 mm
Imaging system: Basler (Germany), 5 megapixel CCD camera
HMI: 7" color touchscreen, English
Hardware: Cutting motor: SEW (Germany), Grinding and automatic lift motor: Shinano (Japan), X axis motor: Shinano (Japan), Misumi ball screw, Hiwin linear guideway
Lighting: Tunable white lighting device
Rated power: 750 W
