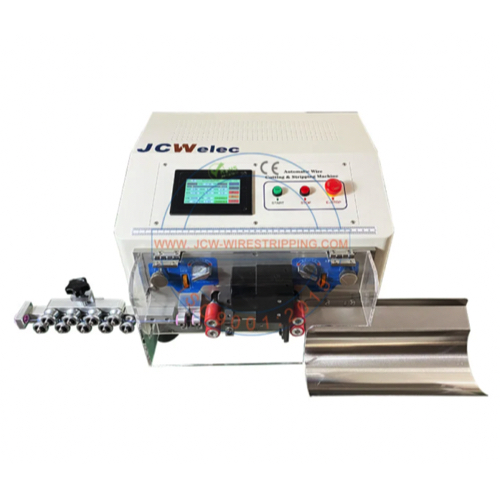

Function: Wire measuring, Cut into length, Full stripping, Partial stripping, Middle strip, Length correction
Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass
Conductor cross-sections: 0.03 - 6.0 mm² [AWG30 - AWG 10]
Cutting length (L): 27 - 999999 mm
Cutting length accuracy: 0.002 x L
Stripping length: Front (right) side - max 40 mm, Rear (left) side - max 30 mm
Production rate: 4600 pcs/h by 50 mm wire length
Data library: 100 programs
Display: 4.3" color touchscreen, English / Chinese [Other languages on request]
Compatible peripherals: Wire prefeeder, robot arm, conveyor belt
Wire feeding: Metal roller [Urethane roller on request]
Power supply: AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply: 0.4 - 0.7 MPa (clean and dry air)
Dimensions: Machine - L 460 x W 470 x H 350 mm, Straightener - 300 mm
Weight: 33 KG
CE-Conformity: Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
• Designed for ultra-short wire cutting and stripping
• Cutting length reaches 27mm while dual-end stripping
• Metal and urethane rollers for selection
• User-friendly multi-language display
• Fully programmable
