General
Measurable Materials: Feebly Magnetic Materials
Measurable Quantities: J vs H curve, permeability (µr), susceptibility (χ)
Measurable Shapes: Straight bars with regular cross-section
Measurement Range
µr Range: 1.001 ÷ 4
χ Range: 0.001 ÷ 3
Test Conditions
Test Time: 30 seconds (typical)
Frequency: DC
Operating Temperature Range: 15 ÷ 40 °C
Accuracy: µr, χ: Better than ±2% | J: ±1% | H: ±1%
Sample Size
Length: 100 ÷ 200 mm
Cross Section: 490 mm² (25 mm diameter)
Ratio Length/Diameter:
Bigger than 10 for µr < 1.5
Bigger than 15 for 1.5 < µr < 2.0
Bigger than 30 for 2.0 < µr < 4.0

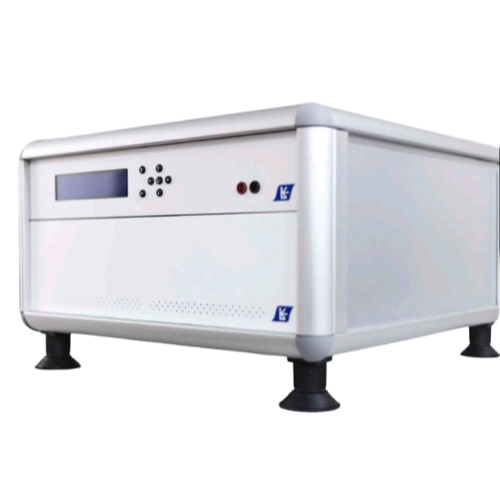

Main Electrical Cabinet
Power Supply: 220 VAC, 50-60 Hz, 16 A max absorption
Dimensions: 543 x 655 x 332 mm
Weight: 50 kg (110 lb)
