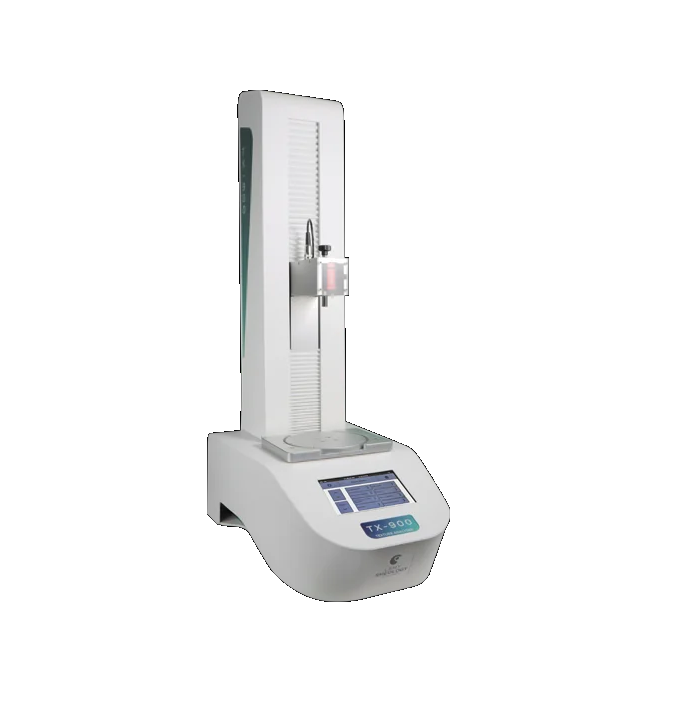

Type of instrument : Texture Analyzer operating in Compression and Traction with 7'' Touch screen
Choice of sensors : 500 N (50 kg), Resolution 0.01 N (1 g)
Speed range : From 0.1 to 10 mm/s +/-0.2 %
Motion : Height: 400 mm / Resolution: 0.1 mm
Temperature : Equipped with a PT100 sensor which indicates temperatures between -50°C to +300°C
Accuracy : +/- 0.5 % of the full scale
Display : Strength – Speed – Distance – Temperature - Time – Measuring probe – Load sensor - Date/hour - Choice of force units: gram or Newton
Compatible accessories :
Probes
Fixtures
Barcode reader with stand and cable
Zebra printer
Touch screen protector
Calibration Kit: 10-20N (Ref.150060) ; 50-100-250N (Ref.150070) ; 500N (Ref.150080).
RheoTex software
Load sensor: 500N
Security and confidentiality : An «operator» function allows you to enter a username for your instrument. This user must then be identified using a 4-digit code. There is also a protected mode that locks your measurement conditions.
Languages : French/English/Russian/Turkish/German/Italian/Portuguese/Korean/Ukrainian
Compatible measuring systems : All probes and cell
Supply voltage : 90-240 VAC 50/60 Hz
PC connections : RS232 Port and USB
Printer connection : USB Host Port - Compatible PCL/5
What benefits are there for you? : Integrated adjustable turntable: diam. 160 mm. Table for attaching inserts: 120 x 220 mm. Available Operating Modes: Compression – Relaxation –Traction – TPA Cycle – Penetrometry and relative
compression mode also. Large selection of probes available and custom probes can be made with choice of material, shape
and size according to your criteria. The TX-900 has a large 7’’ colour touch screen which allows comfortable use and optimal viewing of measurements. Storage of your measuring methods. Data can be backed up and exported using a USB key. External control thanks to the optional software.
Dimensions and weight : D610 x W340 x H970 mm Weight: 27 kg
What's included :
1 Interchangeable force sensor (depending on model).
1 PT 100 temperature probe (-50°C to +300°C).
1 Turntable goes up and down.
1 Instructions for use.
1 Calibration certificate and 1 verification report.
