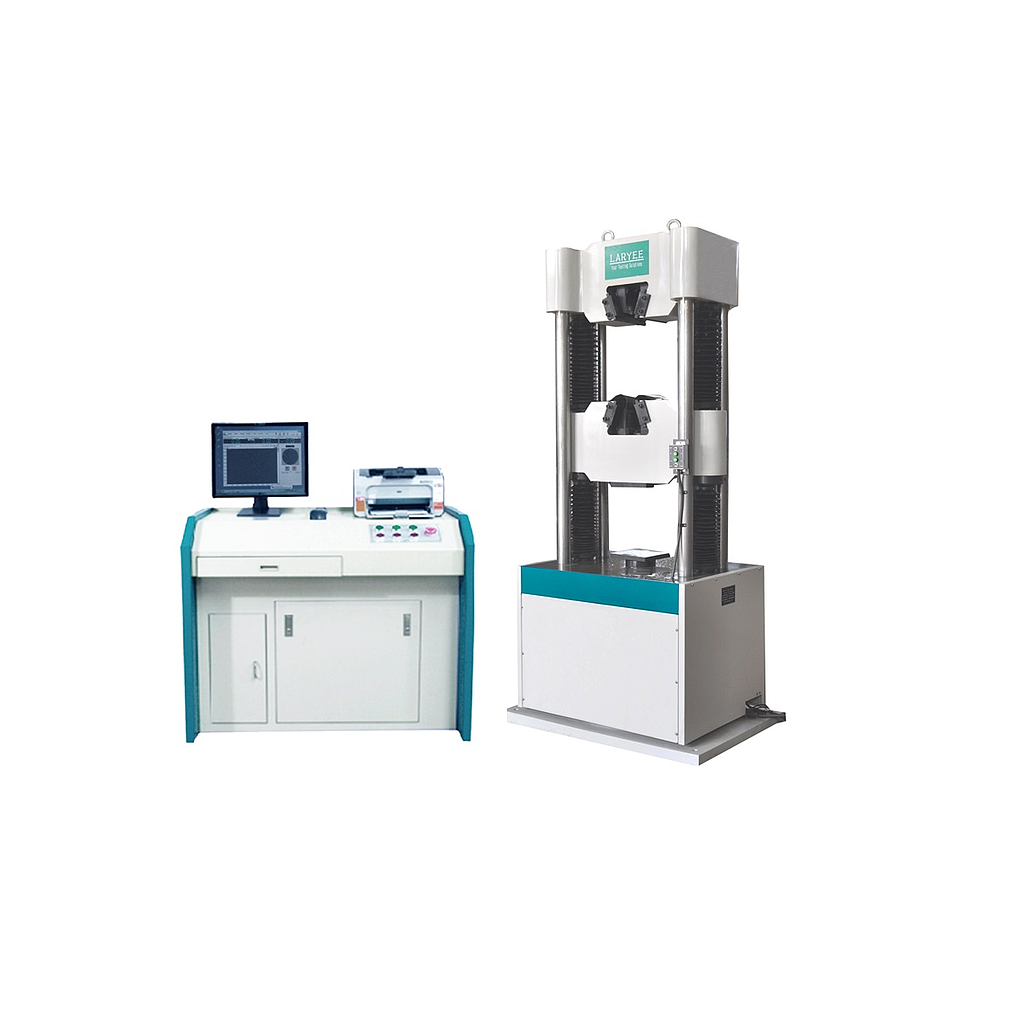

Laryee UH54100 Computer Control Servo Hydraulic Universal Testing Machine (1000 kN)

Maximum force: 1000KN

Measuring range of force: 2%-100% of load capacity

Accuracy: ±1% of indicated value

Resolution of displacement measure: 0.01mm

Range of displacement speed: 0.5mm/min-50mm/min

Clamping diameter of round specimen: Φ13 – Φ60mm

Clamping thickness of flat specimen: 0 - 30mm

Valid width between columns: 620mm

Valid tension space: 600mm

Valid compression space: 500mm

Compression plate size: Φ160mm

Maximum piston stroke: 200mm

Power supply: 3P~220/380V,50/60Hz

Working condition: RT10℃~30℃, relative humidity≦80%

Host machine dimension: 990×740×2350mm

Net weight: 2700Kg
