Lubrication Solution For Cement Industry

Lubrication Methods Sketch Diagram For Cement Plant

Lubrication Characteristics For Cement Plant

- Heavy load, dusty

Raw mill, Riding wheel of rotary kiln, cement mill, coal mill

- Excessive vibration

Vibrating screen

- High temperature

Cooling air blower, drive gearbox of rotary kiln

- Poor seal, heavy load start

Open gear of rotary kiln

- Key equipment is very expensive

Great loss for unscheduled downtime

Lubrication Solution For Rock Drill

Lubrication system for rock drill

Two oil pipelines which are controlled by control valves transport rock drill oil to the following lubrication points respectively from oil tank.

- Impact mechanism

- Gear system

Requirements for rock drill oils

- Good anti-wear performance

- Excellent corrosion resistance and anti-rust property

- Resistance to water wash

- Outstanding low-temperature performance

Lubrication Solution For Crawler Loader

Use of Crawler loader in construction - Basic Civil Engineering

- Engine: Super GPO 15W40

- Gearbox/ Rear axle: APG-140

- All the grease nipples: No. 1552/1242/Synxtreme HD-2/220

Lubrication Solution For Electric Shovel

3D electric rope shovel model - TurboSquid 1222857

Lubrication points

Electric shovel

Engine: Super GPO 15W40

Walking, mechanism, slewing ring gear

APG 80W-140 / Synlube HD 320

All grease nipples: No. 1552/ 1242/ Synxtreme HD-2/220

Wire rope: Chain & Cable fluid

Lubrication Solution For Crusher

Superior V250 Valor Vertical Shaft Impact Crusher | Power Equipment Company

Center greasing system ( bearing, motor bearing): Lubriplate No. 1242/SYN-1602

Speed variator: Lubriplate APG series/ Synlube HD series

Loading system: Lubriplate HO / ZF series/ Synlube series

Lubrication For Hammer Crusher / Re-crushing

Vibrating Screen

- Gearbox: APG series/ Synlube HD series

- Grease fittings: No.1500 series / Synxtreme HD series

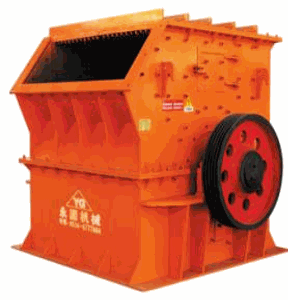

Hammer crusher

- Centralized greasing system: No.1500 series / Synxtreme HD series

Lubrication For Belt Conveyor

Motor bearing: Poly HP-2/ Synxtreme HD-2/220

Gearbox: SPO series / Synlube series

Coupling: LTR-2/ SYN-3002

Bearing: No. 1552/ Synxtreme HD-2/220

Lubrication Solution For Raw Meal Stockpile

Speed variator: APG-90 / Synlube HD 150

Hinge pin: No. 1552

Wire rope: Chain & cable fluid.

Lubrication For Clay Dryer & Fan Blower

Clay dryer

Gearbox: APG series/ Synlube HD series

Open gear: No. 176

Fan blower bearing: No. 1552/ High Temp/ Synxtreme HD-2/220

Others grease nipples: No. 1552/ SYN-1602

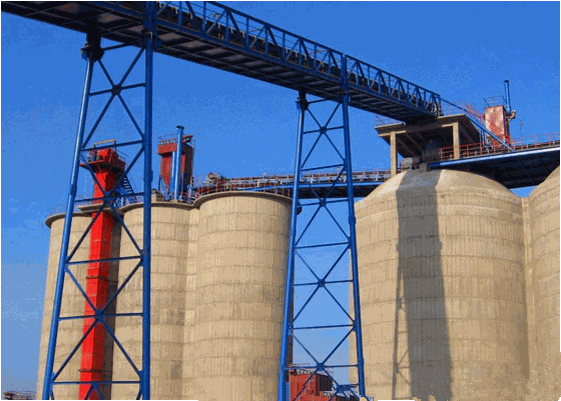

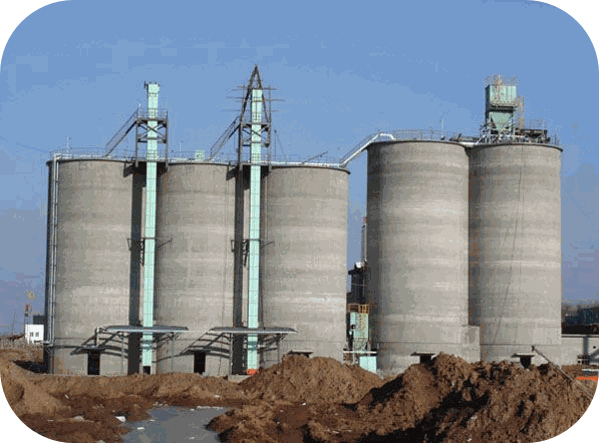

Lubrication For Raw Meal Blend And Storage Silo

Belt conveyor

Gearbox: APG series/ Synlube HD series

Bearing: No. 1552

Lubrication For Elevator Of Raw Meal Storage And Blend

Bucket elevator

Gear reducer: Synlue 220/ Synlube HD 220/ PGO-220

Bearing: No. 1552/ Synxtreme HD-2/220

Hydraulic coupling: HO-0/ZF-32/ Synlube 32

Scale Feeder For Clay, Iron Sand, Sand Stone, Limestone

China New Design Conveyor Belt Weigh Scale Feeder for Mining - China Conveyor Weight Scale, Mining Feeder

Gearbox: APG-90/ Synlube HD 220

Block even bearings: No.1550/ Synxtreme HD-2/220

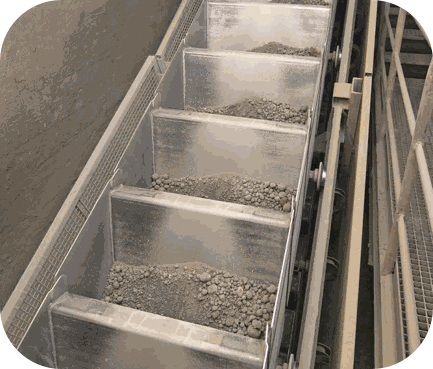

Lubrication For Pan Conveyor

Pan conveyor for Clay/ Iron sand/ Sandstone/ Limestone

Gearbox:

APG-80W140/ APG-140

Synlube HD 320/ 460

SPO-266/277/ Synlube 320/460

Lubrication For Rotatory Feeder Valve

Rotatory feeder valve

- Gearbox: APG-150/SPO-255/ Synlube HD 220/ Synlube 220

- Bearing and shaft seal: No. 1552/ Synxtreme HD-2/220

Hammer mill

- Gear reducer: APG-150/SPO-255/ Synlube HD 220/ Synlube 220

- Bearing: No. 1552/ Synxtreme HD-2/220

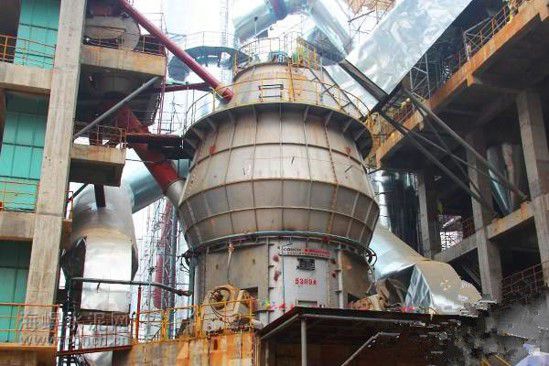

Lubrication For Roller Mill

Roller mill （Vertical mill )

Gear reducer: APG 80W-140/ Synlube HD 320

Bearing: No. 1552

Lubrication For Roller Mill

Oil which is used for millstone drive, grinder roll bearing, is required to have low traction coefficient and does not corrode copper.

PGO-680

F.L Smith grinder roll bearing: Synlube 1000

Hydraulic System Of Roller Mill

Hydraulic System: HO-46 /ZF-46 / Synlube 46

Lubrication For Bucket Elevator

Bucket elevator

Gear reducer: Synlue 320/ Synlube HD 320/ PGO-320

Bearing: No. 1552/ Synxtreme HD-2/220

Hydraulic coupling: HO-0/ZF-32/ Synlube 32

Lubrication Of Air Blower For Mill

Air blower for mill (mill-separator)

Bearing: HO series/ ZF series / Synlube series

Separator:

Vane bearing（high temperature resistance)

Synxtreme HD-2

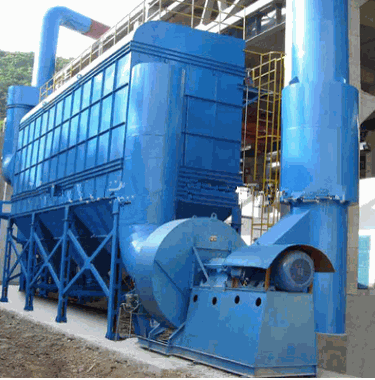

Lubrication Of Air Blower for Electrostatic Precipitation

Air blower for electrostatic precipitation

Bearing: No. 1552/ Synxtreme HD-2/220

Polarline hammer rapper, counter electrode shaker

Gear reducer: APG-250/ Synlube HD 680

Bearing: Poly HP-2/ Synxtreme HD-2

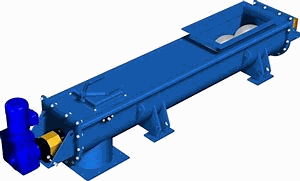

Lubrication For Screw Conveyor

Screw Conveyor

Gear reducer: APG-90 / Synlube HD 220

Bearing and shaft seal:No. 1552/ Synxtreme HD-2/220

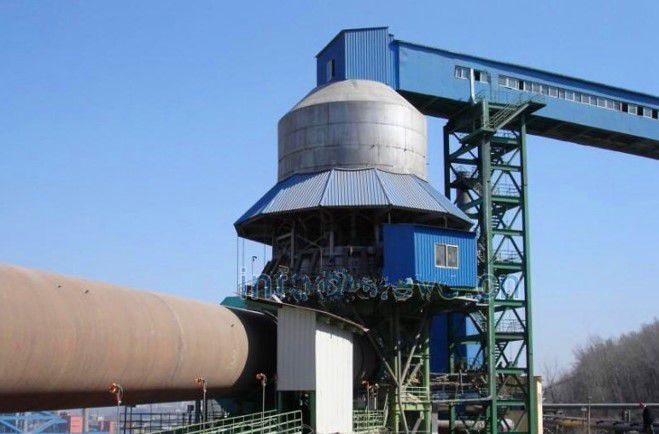

Lubrication Of Air Blower For Preheater

Air blower for preheater

Gear reducer: APG-90/ Synlube HD 220/ SPO-255/ Synlube 220

Bearing: No. 1552/ Synxtreme HD-2/220

Lubrication For Rotary Kiln

Rotary Kiln

Gear reducer: PGO 320-460

Open gear: No. 176

Coupling: No. 1444/SYN -602

Motor bearing: Poly HP-2/ Synxtreme HD-2/220

Lubrication For Riding Wheel of Rotary Kiln

Riding wheel bearing (Supporting wheel)

Synlube 1000

Synlube HD 460-1000

PGO-460/680

Lubrication For Bearing Disc Of Rotary Kiln

Bearing: APG series/ Synlube HD series

Hydraulic system: HO series/ ZF series/ Synlube series

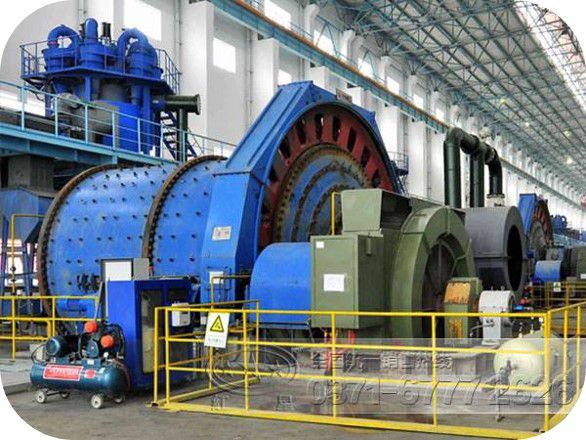

Lubrication For Ball Mill

Gear reducer: APG 80W-140/ Synlube HD 320/ PGO-320

Bearing: APG-140 or APG 250/ Synlube 460-680

Open gear: No. 176

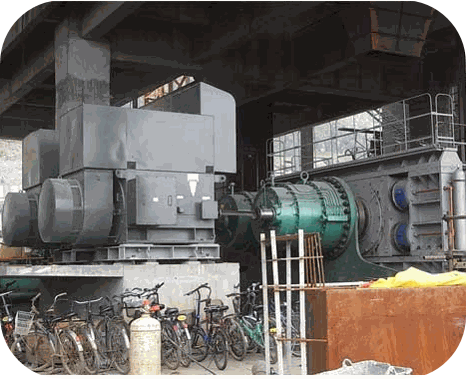

Lubrication For Roller Press

Gear reducer: APG-140/ Synlube HD 460/ SPO-277/ Synlube 460

MAAG gear reducer: APG-90/ Synlube HD 220

Lubrication For Grate Cooler

Gear reducer: APG series/ Synlube HD series/ PGO-series

Air blower bearing: No.1552/ Synxtreme HD-2/220

Motor bearing: Poly HP-2/ Synxtreme HD-2/220

Hydraulic system: HO-1/ ZF-46/ Synlube 46

Centralized lubrication system ( If ): No. 1500

Center lubrication ( If ): No. 1552/ No. 1242/ Synxtreme HD-2/220

Lubrication For Coal Mill System

Vertical coal mill

Gearbox: APG series/ Synlube series/ Synlube HD series/ PGO series (VG 460-1000)

Roller mill bearing: Synlube 460/ Synlube HD 460/ PGO-460

Lubrication For Coal Mill System

Coal mill ( Ball mill )

Gear Reducer: APG 80W140/ Synlube HD 320

Bearing: Synlube 460/Synlube HD460/ PGO 460

Open gear: No.176

Lubrication For Auxiliary Equipment In Cement Plant

Lubrication For Air Compressors in Cement Plant

Screw compressor: Synlube series (VG32-46)

Reciprocating compressor: AC series/Synlube series (VG 68-150)

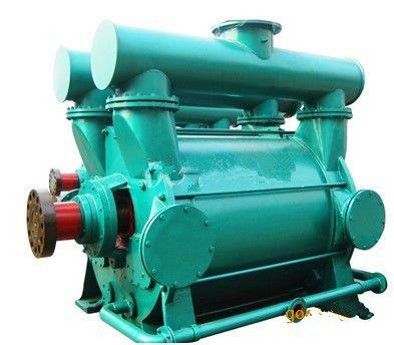

Lubrication For Vacuum Pump In Cement Plant

Vacuum pump: Synlube 460

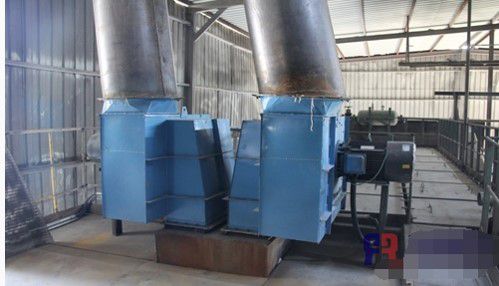

Lubrication For Roots Blower

Roots blower: APG series/ Synlube HD series /Synlube series

Bearing: No. 630-2/ No. 1552/ Synxtreme HD -2/220

Waste Gas Generation System

Summary of Lubricant Variety For Cement Plant

Summary of Lubriplate Lubricant Variety For Cement Plant

Lubricant Consumption For Ø 3.8 M Mill System First Time

Lubricant Consumption For Ø 4.2 M Mill System First Time With Roller Press

Lubricant Consumption For Ø 4.2 M Mill System First Time

Lubricant Consumption For 5000 t/d Clinker Production Line
